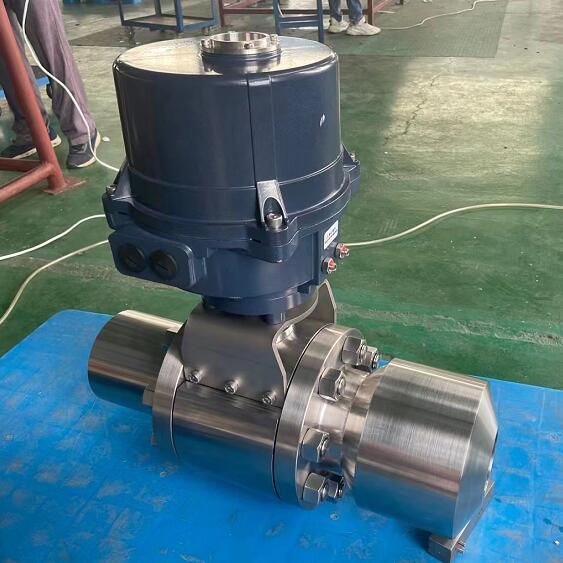

High pressure electric ball valve

Port size：
Pressure：150LB-2500LB
Structure：Floating or trunnion mounted
Medium：Water,steam,oil,gas,etc.
Temperature :-29 to 180 ℃ for soft seat, -40 to 450℃ for metal seat.
Body material：A105,LF2,F304,F316 or other forged steel
Connection：Flanged or welded end
Feature：For high pressure working condition

Product Description

High pressure electric ball valve is compose of high pressure ball valve with forged steel A105,F304,F316,F304L,F316L or other material and on off or regulating electric actuator. High pressure electric ball valve is widely used in industrial automatic control system of food, environmental protection, light industry, petroleum, paper making, chemical industry, teaching and scientific research equipment, electric power and other industries.

High pressure electric ball valve specification:
1.Full port or reduced port, 1/2-12"
2. Nomimal pressure.:150LB-2500LB
3. Working temperature.:-29～180℃,-40～450℃
4. Forged steel:A105,F304 ,F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

High pressure electric ball valve technical parameter:

Optional functions of electric actuator	switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator	QM, QC series
Voltage	AC220V, AC110V, AC380V, or Customized voltage
Nominal diameter	DN15mm ~ DN600mm
Nominal pressure	PN1.0MPa-PN42MPa,150LB-2500LB
Applicable temperature	Soft seal:-30~ +150℃ metal seal:≦450℃
Connection mode	Flanged, threaded, welded end
electric ball valve Body material	A105,F304, F316, F16L or other forged steal
electric ball valve Valve plate material	A105,F304, F316, F16L or other forged steal
electric ball valve Seat lining	PTEE, devlon, PEEK, metal seal or others
Suitable medium	water, petroleum, acid, steam, oil, gas, etc.
