Ball valve manufacturer

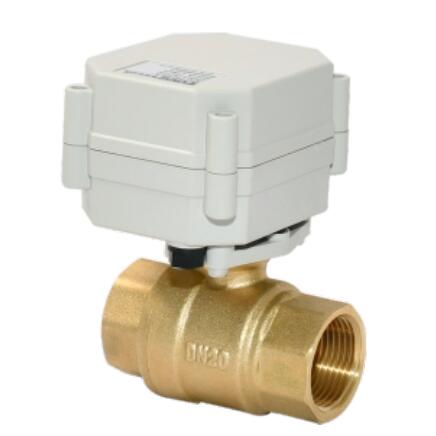

2 way Brass Electric Ball Valve

Port size：1/4"~2" (DN15~DN50)
Pressure：PN10-PN16 CL150
Structure：2PC
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：Brass or other
Connection：Threaded end or others
Feature：On off or regulating type

Product Description

China 2 way Brass Electric Ball Valve manufacturer, factpory and supplier. 2 way Brass Electric Ball Valve working voltage: AC110V~230V, DC9~24V, size range from DN6 to DN50; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. 2 way Brass Electric Ball Valve is applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries

2 way Brass Electric Ball Valve Feature:
1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.

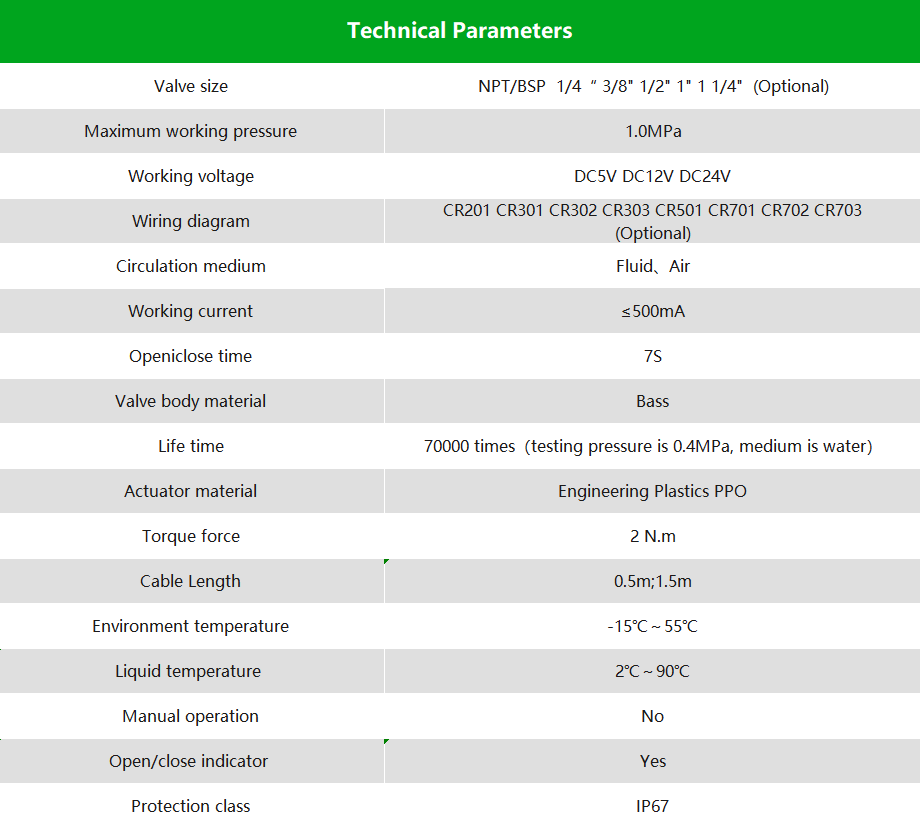

2 way Brass Electric Ball Valve parameter:

2 way Brass Electric Ball Valve parameter

Remark: The torque is according to the size, if parameter is different from above parameter, please contact us.
