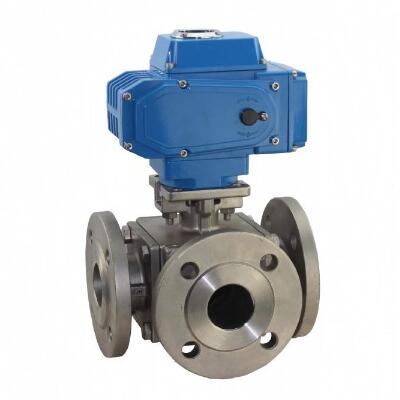

Electric actuated three way ball valve introduction:
Electric actuated three way ball valve is mainly composed of T or L three way ball valve and electric actuator with different function and control, Electric actuated three way ball valve is mainly used in the direction of the pipeline intermediary, confluence and shunt.The L-type electric three way ball valve is to switch or cut off the flow direction of two perpendicular channels of the medium, plays a distribution role, and the T-type electric three way ball valve not only to cut the flow direction of the medium, but also can make the three channels connected to each other or close any one of the channels, play the role of diversion, confluence.The electric actuated three way ball valve can be installed on its actuator valve positioner and other related accessories, can control the ball valve ball core operation, and then play the automatic control of the pipeline medium.
Electric actuated three way ball valve flow direction:
L-shaped three way electric ball valve can only connect or cut off two perpendicular orthogonal pipelines, and cannot maintain the interconnection of the third pipeline at the same time, only playing the role of distribution.
T-type three way electric ball valve can make three orthogonal pipe connected to each other or cut off any third channel, to achieve the function of two in and one out or one in and two out, play the role of diversion, confluent.
Electric actuated three way ball valve Product Range:
-electric ball valve size: 1/2" ~ 24" (DN15-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature for electric ball valve: -46ºC~ 450ºC
-Body Materials: WCB WCC CF8 CF8M or other material
-Trim: CF8 CF8M or other material
-Design: BS5351, ANSI B16.34, DIN, JIS
-Mounting Pad of electric ball valve: ISO5211
Electric actuated three way ball valve technical parameter:
| Optional functions of electric actuator |
switch type, integral type, adjusting type, intelligent type |
| Optional models of electric actuator |
QM, QC series |
| Voltage |
AC220V, AC110V, AC380V, DC12V, DC24V, DC110V |
| Nominal diameter |
DN15mm ~ DN600mm |
| Nominal pressure |
PN1.0MPa~PN10MPa,CL150-CL600 |
| Applicable temperature |
PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃ |
| Connection mode |
Flange |
| electric ball valve Body material |
WCB WCC CF8 CF8M or other material |
| electric ball valve ball material |
CF8 CF8M or other material |
| Seat lining |
PTEE, PPL, metal seal |
| electric ball valve Suitable medium |
water, petroleum, acid, viscous fluid, slurry medium, etc.
|
Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
