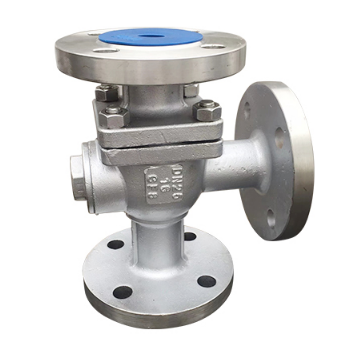

Manual T type 3 way ball valve

Manual T type 3 way ball valve introduction
Manual T type 3 way ball valve is on base of full bore design for converging and diverging flow function.3 way ball valve is T type or L type structure according to the flow direction.T type 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L type 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

Manual T type 3 way ball valve feature
1. Manual T type 3 way ball valve adopts integrated structure in structure, sealing type of 4-face seat, less flange connection, high reliability, design and realization of lightweight
2. Manual T type 3 way ball valve is long service life, large circulation capacity and small resistance
3. L type 3 way  ball valve is 4-side seated ball valve with L-port, with 2-side seats.L port 3 way  ball valveis mainly used for reversing the flow path.
4. T type 3 way ball valve is 4-face seat ball valve, using 4-face seat, force balance, to ensure reliable sealing on the closed channel.T type 3 way ball valve is mainly used for diverging, mixing flow, reversing and full opening of three channels.

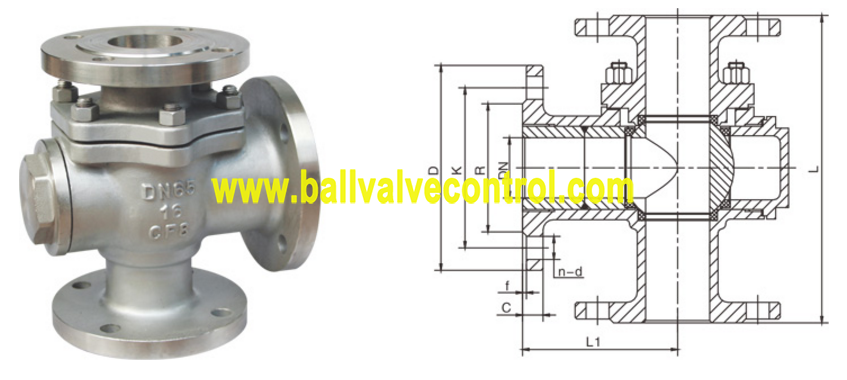

Manual T type 3 way ball valve structure



3 way ball valve flow direction
