Ball valve manufacturer

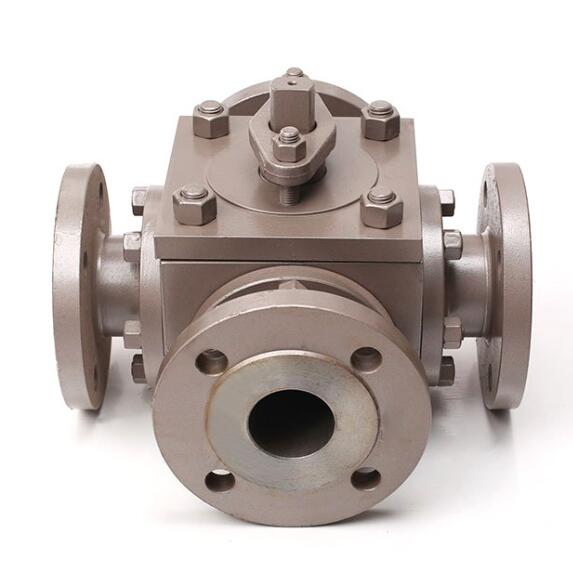

4 Way Ball Valve Factory Price

Port size：1/2"~24" (DN15~DN600)
Pressure：PN10-PN64 CL150-CL600
Structure：4 Way Structure
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Flange or others
Feature：Different material is optional

Product Description

4 Way ball valve factory price for sale,4 Way ball valve manufacturer and supplier in China, 4 way ball valve with manual hand lever operated, threaded end or flanged end, 4 way double X port design. 4 way ball valve known as two-way four-way rotary valve, the 4 way ball valve can be a valve to achieve positive and negative water supply switch, each turn 90℃, water supply mode switch once, before the need for 4 way ball valve, water supply valve 1, 4 open, valve 2, 3 closed; Reverse water supply valve 2, 3 open, valve 1, 4 closed, now use a four-way ball valve instead, easy to operate.

4 way ball valve is suitable for liquid, gas, slurry and solid particle medium circulation system. way ball valve is adopted to replace the working principle of manifold and valve group of the process, which simplifies procedures, facilitates operation, reduces cost, facilitates control and has good synchronization

4 way ball valve Specification:

Product Name	4 way ball valve
1. Material	WCB,CF8,CF8M,CF3,CF8M,etc.
2. Size	1/2~16 inch ( DN15~DN400)
3. Port	Full Port, Double X port
4. Working Pressure	150LB~600LB,PN10~PN64
5. Connection Ends	Flange
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092

4 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
