Ball valve manufacturer

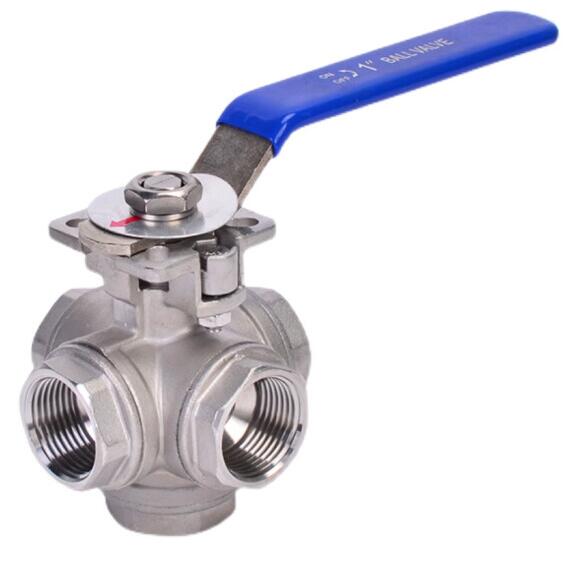

5 Way Ball Valve China Supplier

Port size：1/2"~12" (DN15~DN300)
Pressure：PN10-PN64 CL150-CL600
Structure：5 way
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：CF8 CF8M CF3 CF3M or other stainless steel
Connection：Threaded end or others
Feature：ISO 5211 mounting pad is optional

Product Description

5 Way ball valve China supplier, 5 way ball valve manufacturer and factory in China. 5 way ball valve can be threaded end and flanged end, carbon steel and stainless steel is optional, 5 way ball valve adopts imported advanced technology, reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing. 5 way ball valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve chamber is abnormally pressurized. With standard ISO high platform and locking device. NPT threaded end 5 way ball valve can set 90° switch positioning structure, according to the need to lock to prevent misoperation, driving mode: manual, electric actuator, pneumatic actuator.

5 way ball valve product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

5 way ball valve Specification:

Product Name	5 way ball valve
1. Material	CF8,CF8M,CF3,CF8M,etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	PN10-PN64, 150LB~600LB
5. Connection Ends	Flange, theaded or welded end
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092
