135 degree Y type 3 way ball valve

135 degree Y type 3 way ball valve introduction
135 degree Y type 3 way ball valve with Y type port form, the seat for the three sides of the seat, with each other to 135 ° body structure, switch to the flow direction of medium according to the need to implement two kinds of working conditions.135 degree Y type 3 way ball valve installation of various forms, according to the layout of the pipeline to choose different shapes for installation, smooth flow passage, small fluid resistance, strong flow capacity, will not make the medium stop in the flow passage, the realization of the pipeline can be very good, very smooth switch, will not cause secondary pollution.It can be matched with electric actuators and pneumatic actuators for automatic control.135 degree Y type 3 way ball valve according to the need to achieve the medium flow direction switch, can be perpendicular to the two channels tee ball valve flow resistance is smaller.135 degree Y type 3 way ball valve seat seal according to the different working conditions, the sealing surface can be used PTFE (180 ℃) , PPL (220 ℃) , or hard alloy (450 ℃) , spray welding of nickel base alloy (hardness to HRC60), supersonic coated tungsten cobalt alloy (hardness greater than HRC70) and special hardening material and a variety of advanced materials, the process of 135 degree Y type 3 way ball valve structure is compact, easy to operation and maintenance, suitable for water, solvents, and working medium, such as acid, can satisfy different working conditions.Suitable for all kinds of harsh working conditions, soft seal is suitable for less than 200℃ working conditions, hard seal carbon steel does not exceed 425℃.

135 degree Y type 3 way ball valve Application
135 degree Y type 3 way ball valve according to different working condition, can use soft seal, spray welding of nickel base alloy (hardness greater than HRC60), supersonic coated tungsten cobalt alloy (hardness greater than HRC70) and special hard materials, and other advanced technology, applicable to all kinds of harsh conditions, soft sealing applicable under 220 ℃ condition, hard seal carbon steel does not exceed 425 ℃, stainless steel does not exceed 450 ℃.135 degree Y type 3 way ball valve is widely used in petroleum, chemical industry, power generation, papermaking, hydraulic oil, construction machinery and other industries

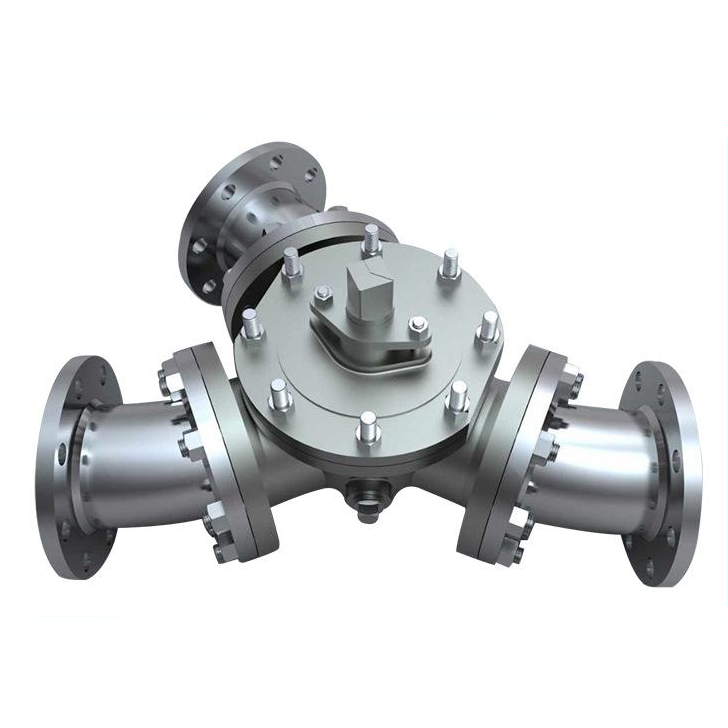

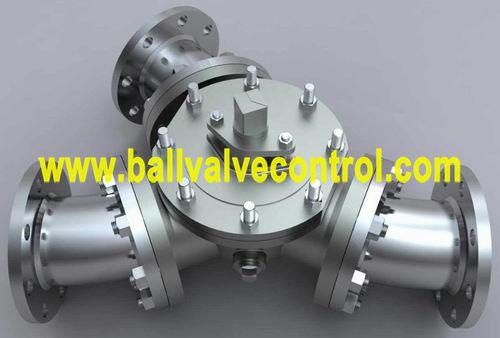

135 degree Y type 3 way ball valve structure	135 degree Y type 3 way ball valve picture

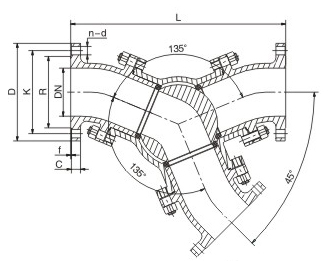

135 degree Y type 3 way ball valve dimension( on base of PN10, If you need other pressure and standard, please consult us)

DN	L	D	K	R	C	f	n-d
50	340	160/165	125	100	20	3	4-18
65	400	180/185	145	120	20	3	4-18
80	410	195/200	160	135	20	3	8-18
100	460	215/220	180	155	22	3	8-18
125	560	245/250	210	185	22	3	8-18
150	660	280/285	240	210	24	3	8-23
200	800	335/340	295	265	24	3	12-23
250	1030	405	355	320	30	3	12-25
300	1140	460	410	375	30	4	12-25

Electric 135 degree Y type 3 way ball valve electric actuator switch type: feedback signal: passive contact signal 4-20mA resistance signal Regulator type: input signal 4-20mA,0-10V,1-5V;Feedback signal: 4-20mA,0-10V,1-5V, Voltage: AC220V,AC380V,AC110V,DC24V, DC12V,DC24V, etc.Special voltage can be customized, explosion-proof grade: optional explosion-proof EXdIIBT4 actuators.

Pneumatic 135 degree Y type 3 way ball valve pneumatic actuators according to the action type divided into single action and double action two types, the single action type is characterized by once the power source failure, the ball valve will be in the control system requirements of the state. double functions: ventilation on, ventilation off, air source fault to maintain the current position,which can install reversing solenoid valve, limit switch, air filter, positioner, handwheel mechanism, position protection valve accessories according to client’s requirement.
