Ball valve manufacturer

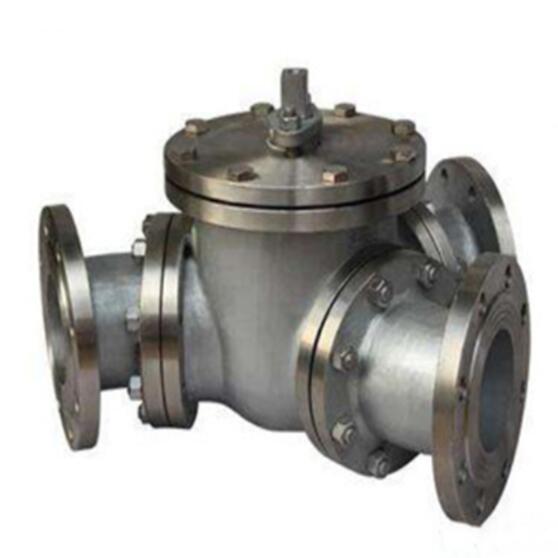

China Y Type 3 Way Ball Valve

Port size：DN50-DN300;2''-12''
Pressure：PN16 ~ 100,150LB ~ 600LB
Structure：120 Degree or 135 Degree
Medium：Dust,air,etc.
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel
Connection：Flanged end or others
Feature：Y type three way ball valve

Product Description

China Y type 3 way ball valve manufacturer,factory and supplier for 120 degree 135 degree Y type ball valve,120 degree 135 degree Y type 3 way ball valve flow path is flat, small fluid resistance, strong flow capacity.When switching medium has no retention, it will not cause secondary pollution.120 degree 135 degree Y type ball valve is widely used in powder conveying industry. China Y type 3 way ball valve can be matched with electric actuators and pneumatic actuators for automatic control.

The ball of 120 degree 135 degree Y type 3 way ball valve is driven by the electric actuator or pneumatic actuator to rotate 90 ° to achieve the purpose of reversing control, or to achieve the purpose of reversing and shunt mixing control through 180 ° rotation action.The pipeline connected with the flange can maintain good sealing performance, facilitate maintenance and replacement, and facilitate closure of the pipeline.(The user needs to provide the y type 3 way ball valve body structure first when ordering), 120 degree 135 degree Y type 3 way ball valve is smooth flow passage, small fluid resistance, strong flow capacity.

China Y type 3 way ball valve structure feature
1. The flow passage forms a 120 degree switch or 135 degree switch, with smooth flow passage, small resistance and strong flow capacity.
2. According to the actual working conditions, the ball center and the seat seal can be respectively used soft seal, spray welding nickel base alloy (hardness greater than HRC60), supersonic tungsten-cobalt alloy (hardness greater than HRC70) and special hardening materials and other advanced technologies.
3. Soft seal temperature: 250 ° C.
4. Hard sealed carbon steel not exceeding 425 ° C and stainless steel not exceeding 450 ° C.

Name：	China Y type 3 way ball valve	Mode：	Q42F,Q642F,Q942F
Driven mode：	Manual,pneumatic,electric	Connection：	Flange
Structure form：	Y type	Seal structure：	Soft seat,metal seat
Pressure range ：	1.6MPa-6.4MPa, 150LB-600B	Size：	DN50-300,2’’-12’’
Material：	Carbon steel,stainless steel,etc.	Remark	Accept customized products

China Y type 3 way ball valve technical parameter
Nominal diameter: DN50-300,2’’-12’’
Material of valve body: WCB, 304, 316 or others
Connection: Flange type
Pressure class: PN1.6-4.0Mpa,150LB-600B
Structure: Y 120 degrees, Y 135 degrees
Seat seal: PTFE: -30℃ ~ 180℃
PPL: -30℃ ~ 220℃
Hard seal: -30℃ ~ 450℃ Cemented carbide: surface spray welding, tungsten nitride
Ball material: 304, 316, 316;The surface of hard sealed ball core is spray welding and tungsten nitride
Ball valve stem material: 304
Ball valve applicable medium: powder, liquid water, gas, etc
No retention of medium
Leakage: Zero leakage
