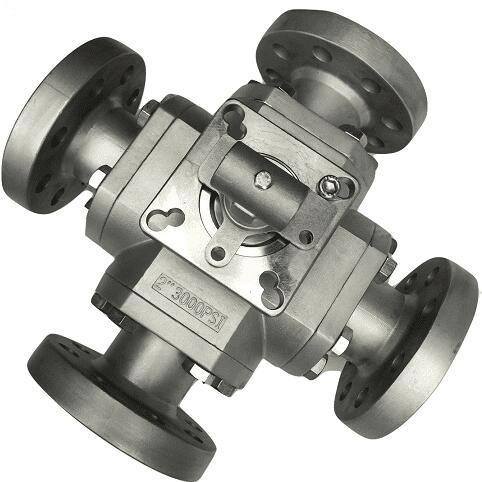

High pressure 4 way ball valve

High pressure 4 way ball valve China 4-Way Ball Valve manufacturer,factory and supplier for High pressure 4 way ball valve with manual hand lever or gear unit operated, depending on ball valve size. We also offering High pressure 4 way ball valve with either Pneumatic or Electrical actuator operated for automation. We have wide range of Pnenumatic Actuator Operated 4 Way Ball Valve, Pneumatic Actuated Four Way Ball Valve, Remote Operated Four Way Ball Valve, Auto Shut Off 4 Way Ball Valve, Pneumatic Actuated  Way Ball Valve, Pneumatic Air Operated 4 Way Ball Valves, X Port Four Way Ball Valve Pneumaticaly.

High pressure 4 way ball valve Specification:

Product Name	High pressure 4 way ball valve
1. Material	F304/F316/F304L/F316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size	1/2~16 inch ( DN15~DN400)
3. Port	Full Port
4. Working Pressure	150LB~2500LB
5. Connection Ends	Flange
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092


High pressure 4 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

High pressure 4 way ball valve structure
