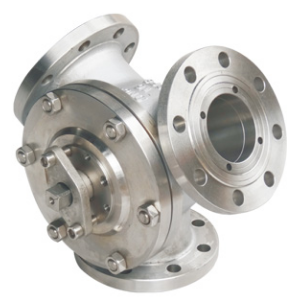

Stainless steel Y type 3 way ball valve

Stainless steel Y type 3 way ball valve introduction
Stainless steel Y type 3 way ball valve flow passage form is 120° switch, the flow passage is flat, the fluid resistance is small, the flow capacity is strong,Stainless steel Y type 3 way ball valve will not make the medium stay in the flow passage inside, the realization of each pipeline can get a good, very smooth switch.

Stainless steel Y type 3 way ball valve Ball and seat sealing according to different working condition, can use soft seal, spray welding of nickel base alloy (hardness > HRC60), supersonic coated tungsten cobalt alloy (hardness > HCR70) and special hardening material such as a variety of advanced technology, Stainless steel Y type 3 way ball valve is applicable to all kinds of harsh conditions, sealing applicable under 280 ℃ condition, hard seal carbon steel does not exceed 425 ℃, stainless steel does not exceed 450 ℃

Stainless steel Y type 3 way ball valve has each other into 120°, 135° two types of body structure, 120 Degree Y type 3 way ball valve is flow path flat, small fluid resistance, strong flow capacity.When switching medium has no retention, 120 Degree Y type  ball valve will not cause secondary pollution.120 Degree Y type 3 way ball valve is automatic control with electric actuators and pneumatic actuators.

Stainless steel Y type 3 way ball valve technical parameter
Nominal diameter: DN50-DN250
Material of valve body: WCB,CF8,CF8M or others.
Connection: Flange type
Pressure class: PN1.6-4.0Mpa,CL150-CL300
Structure: Y 120 degrees, Y 135 degrees
Carbon steel Y type 3 way ball valve Internal assembly:
Seat seal: PTFE: -30℃ ~ 180℃
PPL: -30℃ ~ 250℃
Hard seal: -30℃ ~ 450℃ Cemented carbide: surface spray welding, tungsten nitride
Spool material: 304, 316, 316;The surface of hard sealed ball core is spray welding and tungsten nitride
Valve stem material: 304
Applicable medium: powder, liquid water, gas, etc.

Stainless steel Y type 3 way ball valve structure
