Ball valve manufacturer

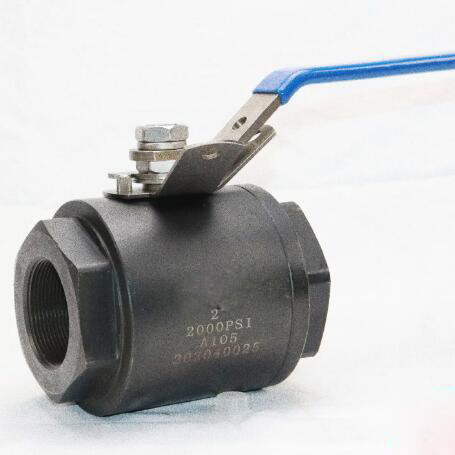

2PC 2000 PSI WOG Ball Valve A105

Port size：1/2"~2" (DN15~DN50)
Pressure：2000 PSI WOG or others
Structure：2PC,Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：A105 or LF2 F304 F316 F316L,etc.
Connection：Flange,Thread,SW,BW is optional
Feature：Different structure is optopnal

Product Description

2000 PSI, 2000 WOG Ball Valve Manufacturer, Factory and Supplier with best price for sale. 2PC 2000 PSI WOG Ball Valve A105 can be threaded end or socket welded end, full bore, floating ball structure, 2PC 2000 PSI WOG Ball Valve A105 is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems. 2PC 2000 PSI WOG Ball Valve A105 has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 2PC 2000 PSI WOG Ball Valve A105 can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

2PC 2000 PSI WOG Ball Valve A105 Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

2PC 2000 PSI WOG Ball Valve A105 Specification:

Product Name	2PC 2000 PSI WOG Ball Valve A105
1. Material	A105 or F304,F316 etc.
2. Size	1/4~2 inch ( DN10~DN50)
3. Port	Full Port
4. Working Pressure	2000 PSI or others
5. Connection Ends	Threaded end, Socket welded or others
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598
