Ball valve manufacturer

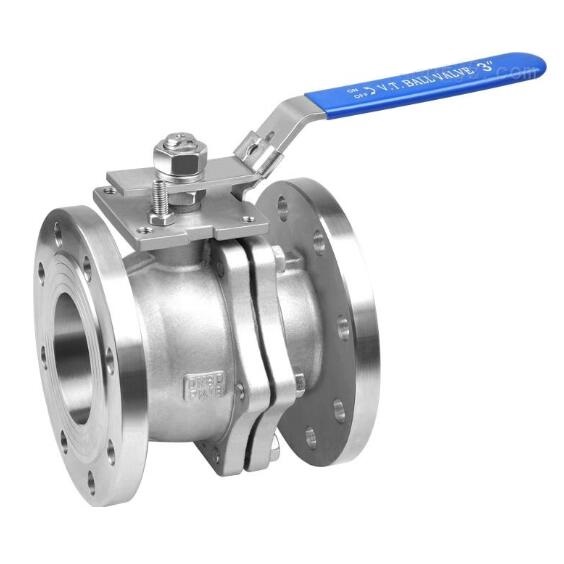

Locking lever lockable ball valve

Port size：1/2"~12" (DN15~DN300)
Pressure：PN10-PN64 CL150-CL600
Structure：Floating ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Flange or others
Feature：China lockable ball valve manufacturer

Product Description

China lockable ball valve manufacturer,factory,factory and supplier, Locking lever lockable ball valve features a lead-free lockable handle. The locking handle allows the ball valve to be locked into an open or closed position, so that the operator has even greater control over its use.

Locking lever lockable ball valve Specification:

Product Name	Locking lever lockable ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB~600LB
5. Connection Ends	Flange
6. Working Temp.	-20~180ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Locking lever lockable ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Locking lever lockable ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE/Delvon/PEEK seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
