Ball valve manufacturer

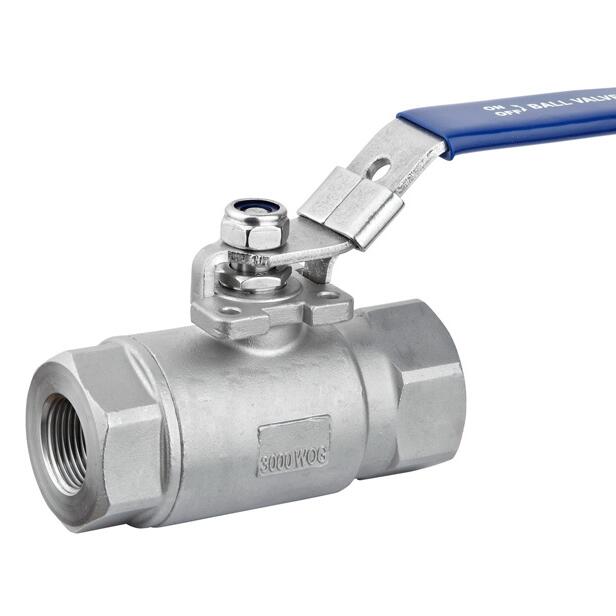

3000 PSI WOG high pressure ball valve

Port size：1/2″ to 4″,DN15-DN100
Pressure：3000 PSI, 3000 WOG
Structure：2 Piece or 3 piece
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：WCB, 304SS, 316SS or others
Connection：Threaded end or welded end or others
Feature：Customized order is acceptable.

Product Description

3000 PSI WOG high pressure ball valve manufacturer, factory and supplier. 3000 PSI WOG high pressure ball valve can be 2 piece or 3 piece body design and threaded end or welded end according to client's need. 3000 PSI WOG high pressure ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle, ISO 5211 mounting pad or lever, electric or pneumatic actuator.3000 PSI WOG high pressure ball valve is suitable for 3000 psi (at ambient temperature) water, oil, or gas and steam.

2000 PSI WOG high pressure ball valve specification

Type: Ball Valve, 2-Piece or 3-Piece, Full Port

Size: 3/8"-4''

Rating: 3000 WOG (Other pressure class is optional)

Connection: Threaded (NPT,BSP,RC)

Body Material: WCB, 304SS 316SS or other material

Ball: WCB, 304SS 316SS or other material

Stem: 304SS 316SS or other material

Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad or lever, electric or pneumatic actuator.
