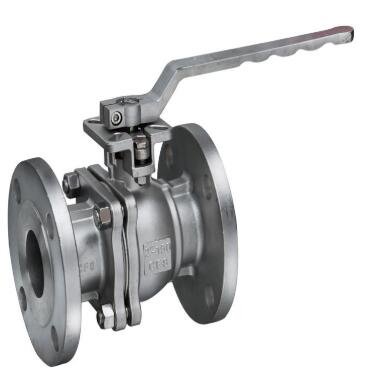

High temperature steam ball valve

High temperature steam ball valve introduction:
High temperature steam ball valve is mainly for high temperature steam system,High temperature steam ball valve is 2 PC split body,full bore,floating ball design with metal seated design for high temperature medium, High temperature steam ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of High temperature steam ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

High temperature steam ball valve Specification:

Product Name	High temperature steam ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB~600LB
5. Connection Ends	Flange
6. Working Temp.	-196~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598


High temperature steam ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

High temperature steam ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Metal seat seal.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
