Ball valve manufacturer

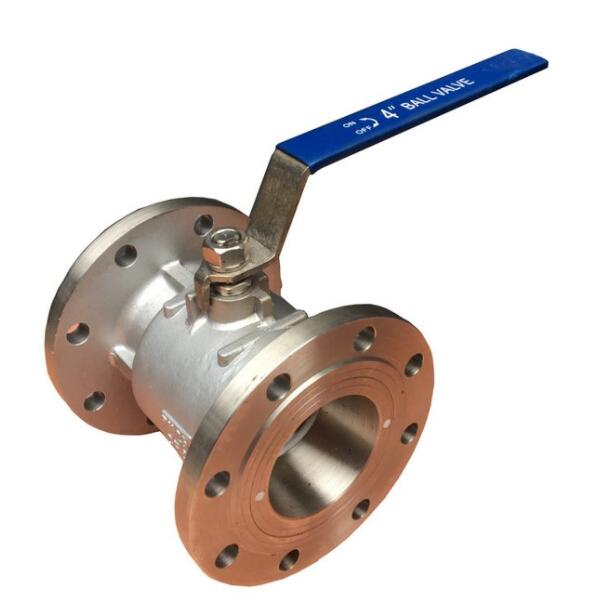

China floating unibody ball valve

Port size：DN15-DN300;1/2''-12''
Pressure：PN16 ~ 100,150LB ~ 600LB
Structure：One piece structure
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged end or others
Feature：Zero leakage, high temperature

Product Description

China floating unibody ball valve manufacturer,factory and supplier,floating unibody ball valve is one piece structure,which adopts a new sealing material graphite as the seat, and the service life of the ball valve is increased by 3-5 times.China floating unibody ball valve has stable performance, reliable sealing, friction small, light switch, high temperature resistant, wear resistant, oil resistant and corrosion resistant, long service life,China floating unibody ball valve have the same face to face length with globe valve, plunger valve.China floating unibody ball valve is widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, alternative cut-off valve, plunger valve, quick discharge valve.China floating unibody ball valve applicable medium: water, steam, heat conduction oil and other acids, service temperature: ≤350℃

China floating unibody ball valve specification
Nominal diameter:1/2"~12" (DN15~DN300)
Nominal pressure:PN10-PN64 CL150-CL600
Body material carbon steel, 304/316/316L stainless steel
The material of the ball is stainless steel 304/316/316L
Seat seal：Graphite
Temperature：≤350℃,
Suitable for medium water, oil, heat conduction oil, steam, high temperature gas, etc
Features high temperature resistance, integrated structure, low resistance, a variety of length.

China floating unibody ball valve performance
1. Floating ball, reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Graphite seat seal.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
