Ball valve manufacturer

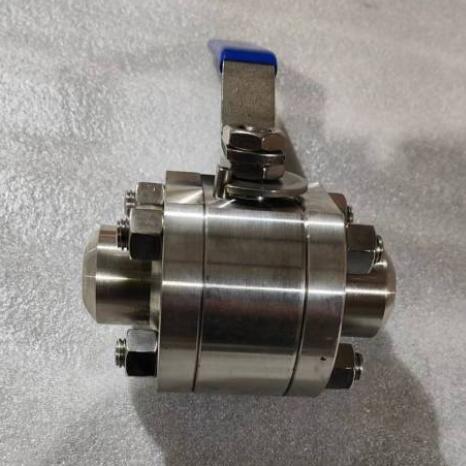

Q61F Q61Y Butt welded end ball valve

Port size：1/2″ to 4″,DN15-DN100
Pressure：150LB-2500LB
Structure：3 PCS, Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-20 to 180 ℃ for soft seat, -40 to 450℃ for metal seat.
Body material：A105,LF2,F304,F316 or other forged steel
Connection：SW, BW, NPT, Flanged or others
Feature：BW,SW,NPT end is optional

Product Description

Q61F Q61Y Butt welded end ball valve manufacturer, factory and supplier for Q61F Q61Y Soft seated or metal seated ball valve with butt welded end, 2PCS or 3PCS Structure, full bore, threaded end, socket welded, flanged end is optional according to client's requirement. Pressure class from 150LB to 2500LB is acceptable, we also can accept customized order for different special material.

Q61F Q61Y Butt welded end ball valve specification:

Product Name	Q61F Q61Y Butt welded end ball valve
1. Material	A105 F304 F316 or others
2. Size	1/2~4 inch ( DN15~DN100)
3. Port	Full Port,reduced port
4. Working Pressure	150LB~2500LB
5. Connection Ends	SW, BW, NPT, Flanged or others
6. Working Temp.	-10~425℃, or according to customer requirements for different industry.
7. Suitable Medium	Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Q61F Q61Y Butt welded end ball valve standard:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
