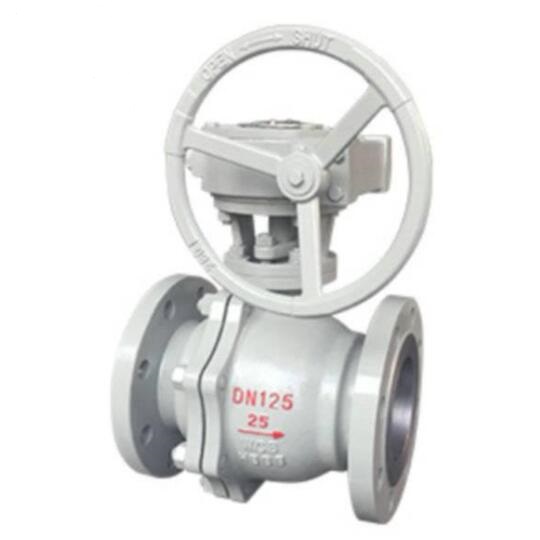

5 inch DN125 125mm flanged ball valve

Port size：5 inch DN125 125mm
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS,Floating ball
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged end or others
Feature：Different material is optional

Product Description

China flanged ball valve manufacturer,factory,company and supplier,5 inch DN125 125mm flanged ball valve is 2 PCS,Floating structure,5 inch DN125 125mm flanged ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries.

5 inch DN125 125mm flanged ball valve Specification:

Product Name	5 inch DN125 125mm flanged ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	5 inch DN125 125mm
3. Port	Full Port
4. Working Pressure	150LB~2500LB
5. Connection Ends	Flange
6. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

5 inch DN125 125mm flanged ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

5 inch DN125 125mm flanged ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
