Ball valve manufacturer

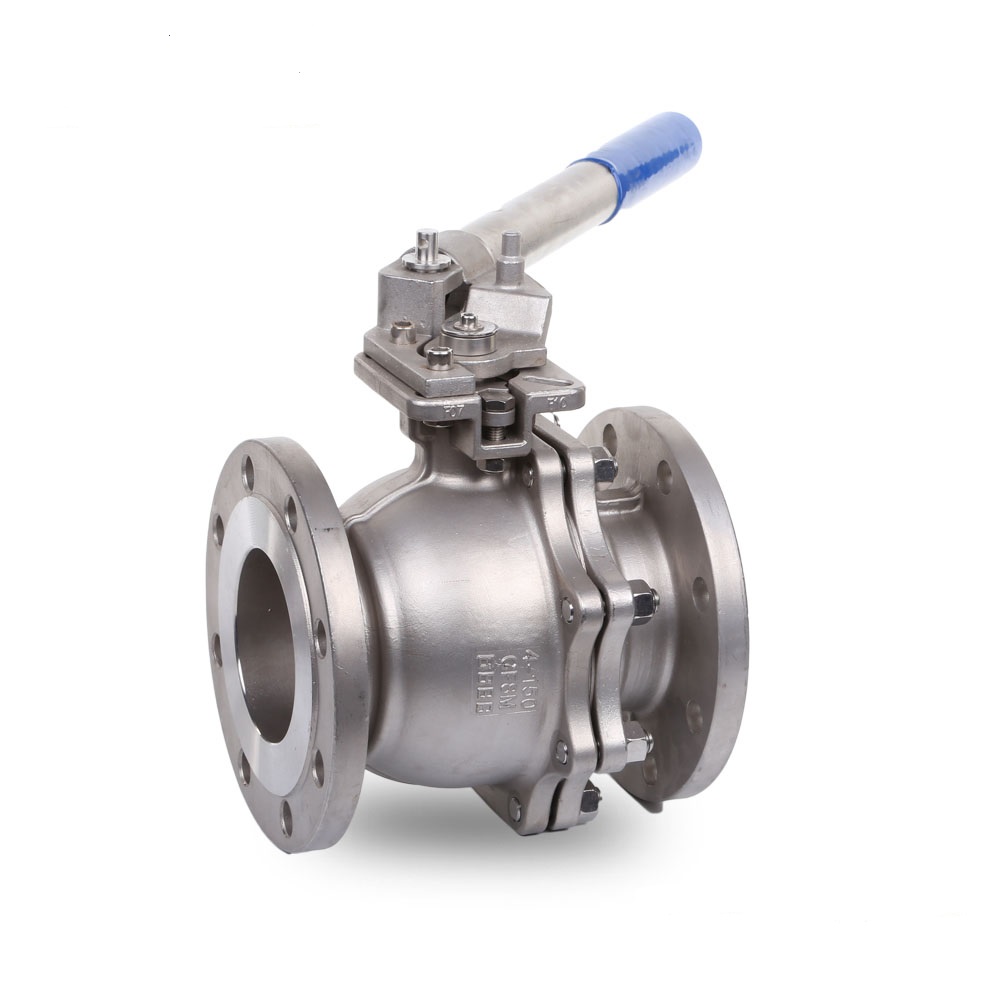

Flange End Deadman Spring Return Ball Valve

Port size：DN15-DN100
Pressure：Class 150-Class 600
Structure：Full Bore
Medium：W.O.G.
Temperature :-29～180℃ or higher
Body material：WCB, CF8,CF8M,etc.
Connection：Flanged End or others
Feature：Spring return, self closing

Product Description

Flanged end deadman spring return ball valve manufacturer, factory and supplier. Flanged end deadman spring return ball valve is 2 PC full bore, floating ball design with spring return handle for safe close, WCB CF8 CF8M CF3 CF3M or other material is optional, Flanged end deadman spring return ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of Flanged end deadman spring return ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

Flanged end deadman spring return ball valve Specification:

Product Name	Flanged end deadman spring return ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~8 inch ( DN15~DN200)
3. Port	Full Port
4. Working Pressure	150LB~1500LB
5. Connection Ends	Flange
6. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Flanged end deadman spring return ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Flanged end deadman spring return ball valveProduct Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
