Ball valve manufacturer

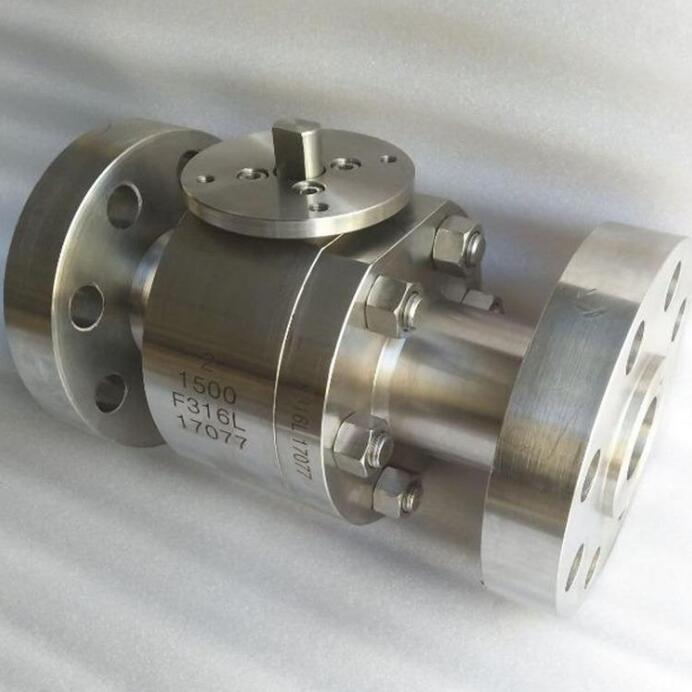

Severe service metal seated ball valve

Port size：1/2"~12" (DN15~DN300)
Pressure：CL150-CL2500
Structure：Floating ball
Medium：Severe service medium
Temperature :-196~540ºC
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flange or others
Feature：Severe service ball valve

Product Description

Severe service metal seated ball valve introduction:
China metal seated ball valve manufacturer,factory and supplier, Severe service metal seated ball valve is mainly for high temperature or severe service system,Severe service metal seated ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries for severe sevice situation

Severe service metal seated ball valve Specification:

Product Name	Severe service metal seated ball valve
1. Material	F304/F316/F304L/F316L ( CF8/CF8M/CF3/CF3M), etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB~2500LB
5. Connection Ends	Flange or others
6. Working Temp.	-196~540ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Severe service metal seated ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Severe service metal seated ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Metal seat seal.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
