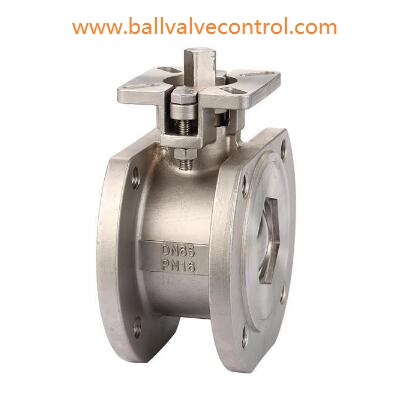

Wafer short length direct mount ball valve

Wafer short length direct mount ball valve introduction:
Wafer short length direct mount ball valve has the obvious advantages of short structure length, light weight, convenient installation and material saving compared with ordinary ball valve.Wafer short length direct mount ball valve seat use the elastic sealing structure, the sealing is reliable, opens and closes easily.With fire-resistant structure, in case of fire, Wafer short length direct mount ball valve can still operate reliably and have good sealing.The 90° switch with hole positioning plate for Wafer short length direct mount ball valve is set, which can be locked as needed to prevent misoperation. Choose different material, Wafer short length direct mount ball valve can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.Suitable medium: water, gas, oil, natural gas and caustic medium.

Wafer short length direct mount ball valve design parameter:
Ball valve size:1/2" - 12" (inches)
Structure: short pattern
Working Pressure : ANSI 150LB 300LB,PN10,PN16,PN25,PN40
Temperature Rating : -29～150℃ (soft seat);-40～450℃ (metal seat)
direct mount ball valve is long cycle life
Blow-out proof steam
Anti-static device
Adjustable stem packing, handle with lock device
ISO-5211 Pad for direct mount automation
Standard: API 598
Vacuum Service to 29" Hg
End Connections: thread end (BSP,BSPT,NPT,G,RC thread)
