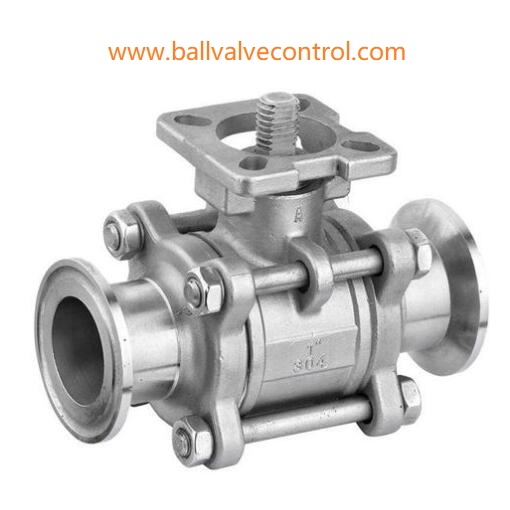

3PC Clamp quick install direct mount ball valve

3PC Clamp quick install direct mount ball valve introduction:
3PC Clamp quick install direct mount ball valve is composed of clamp end ball valve for sanitary condition and ISO 5211 mounting pad for manual,electric or pneumatic actuator.3PC Clamp quick install direct mount ball valve is available in high quality 304 316 304L 316L and other stainless steel in clamp connection ends with 1000 WOG,2000 WOG,PN16 PN25 PN40 PN64 Pressure class.3PC Clamp quick install direct mount ball valve is available in sizes 1/4", 3/8", 1/2", 3/4", 1" 1 1/4", 1 1/2", 2",2 1/2'',3'',4''.
3PC Clamp quick install direct mount ball valve is ideal for any water type of environment,such as waste water, industrial or commercial use, chemical, petro and oil industries and services.

3PC Clamp quick install direct mount ball valve design parameter:
direct mount ball valve size:1/2" - 4" (inches)
Structure:Flaoting ball, full bore,3 piece
Working Pressure : 1000 WOG,2000 WOG
Temperature Rating : -29～150℃ (soft seat);-40～450℃ (metal seat)
direct mount ball valve is long cycle life
Blow-out proof steam
Anti-static device
Adjustable stem packing, handle with lock device
ISO-5211 Pad for direct mount automation
Test Standard: API 598
Vacuum Service to 29" Hg
End Connections: clamp

3PC Clamp quick install direct mount ball valve design structure:

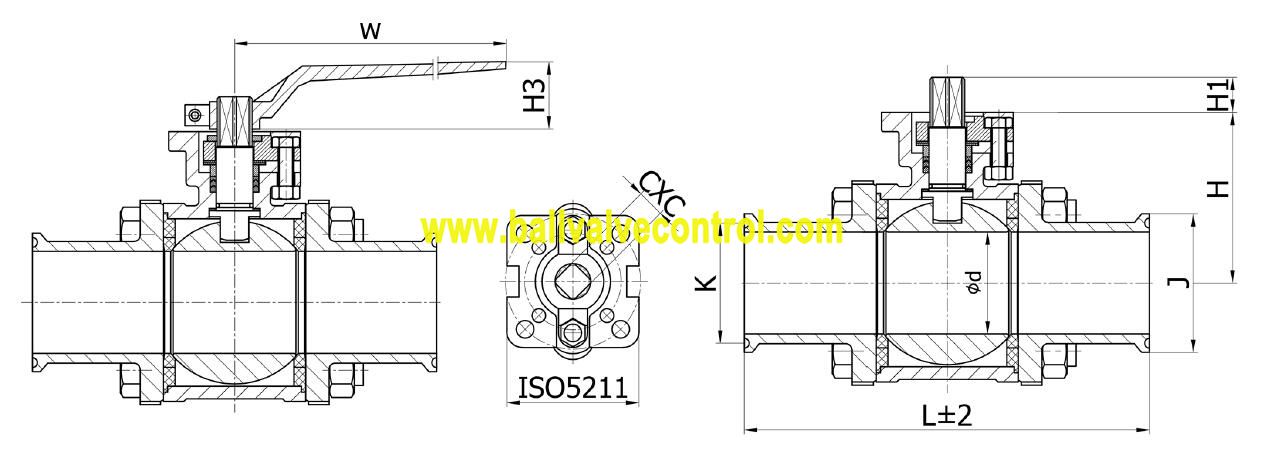

3PC Clamp quick install direct mount ball valve dimension:
