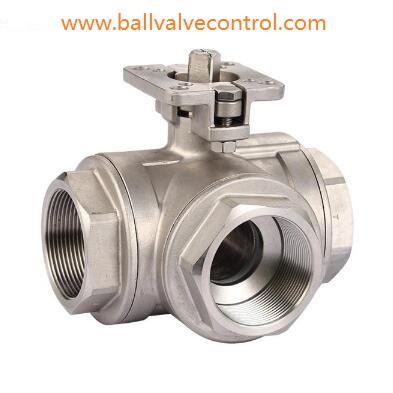

Female thread 3 way direct mount ball valve

Female thread 3 way direct mount ball valve introduction:
Female thread 3 way direct mount ball valve is a relatively new type of ball valve, it has its own unique advantages, such as no friction switch, sealing is not easy to wear, opening and closing torque is small.Female thread 3 way direct mount ball valve is equipped with the pneumatic actuator or electric actuator, the medium can be adjusted and cut off strictly.Female thread 3 way direct mount ball valve is widely used in petroleum, chemical industry, urban water supply and drainage and other conditions requiring strict cut-off.
Female thread 3 way direct mount ball valve is switch light, small volume, Female thread 3 way direct mount ball valve can be made into a large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical often in the closed state, not easy to be eroded by the medium, in various industries have been widely used.TheFemale thread 3 way direct mount ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline.

Female thread 3 way direct mount ball valve design parameter:
3 way ball valve size:1/2" - 4" (inches)
Structure:3 way :T port or L port
Working Pressure : 1000 WOG,2000 WOG
Temperature Rating : -29～150℃ (soft seat);-40～450℃ (metal seat)
direct mount ball valve is long cycle life
Blow-out proof steam
Anti-static device
Adjustable stem packing, handle with lock device
ISO-5211 Pad for direct mount automation
3 way ball valve Test Standard: API 598
Vacuum Service to 29" Hg
End Connections: thread end (BSP,BSPT,NPT,G,RC thread)

Female thread 3 way direct mount ball valve feature:
1. Female thread 3 way direct mount ball valve is Compact structure, fast opening and closing, smooth flow passage and small fluid resistance.
2. Female thread 3 way direct mount ball valve is good sealing performance: non-leakage sealing is realized by using the elastic deformation of teflon, the material of the four-side seat.
3. Female thread 3 way direct mount ball valve is multi-purpose: any port can be used as the entrance without leakage, three can be made into L-type port, also can be made into T-type port.
4. Female thread 3 way direct mount ball valv is easy maintenance: After pressure relief of the system, inspection and maintenance can be conducted without removing the entire valve body.
