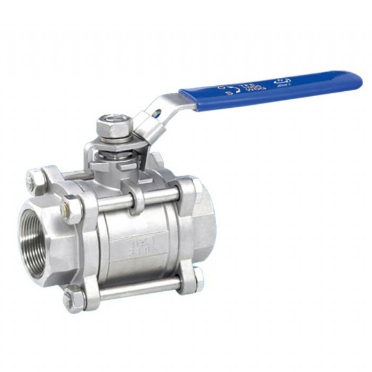

Female threaded stainless steel ball valve introduction:
Female threaded stainless steel ball valve valve is 2 or 3 pcs,full bore design,Female threaded stainless steel ball valve seat adopts elastic sealing structure, which is reliable and easy to open and close.The stainless steel ball vale stem adopts a down-mounted structure with an inverted seal, so that the stem will not be rushed out when the valve cavity is under abnormal pressure.Both Female threaded stainless steel ball valve can be equipped with ISO support platform and locking device.The 90° switch positioning mechanism can be set, Female threaded stainless steel ball valve can be locked as needed to prevent misoperation. The Female threaded stainless steel ball valve driving mode is manual, electric and pneumatic.
Female threaded stainless steel ball valve is widely used in pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role,the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.
Female threaded stainless steel ball valve Specification:
| Product Name |
Female threaded stainless steel ball valve |
| 1. Material |
SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), etc. |
| 2. Size |
1/2~3 inch ( DN15~DN80) |
| 3. Port |
Full Port |
| 4. Working Pressure |
1000PSI 2000PSI |
| 5. Connection Ends |
Female |
| 6. Working Temp. |
-20~180ºC,-46~450ºC, or according to customer requirements for different industry. |
| 7. Suitable Medium |
Water, Natural Gas, Oil and some corrosive liquid |
| 8. Operation |
Handle operated, Locking device is option |
| 9. Inspection & Testing |
According to API598 |
Female threaded stainless steel ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
