Ball valve manufacturer

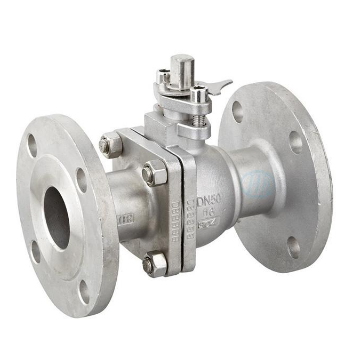

2PC Full bore stainless steel ball valve

Port size：1/2'' ~ 16''( 15mm ~ 400mm)
Pressure：Class 150 ~ Class 600
Structure：Floating ball,2PC,full bore
Medium：Water,oil,steam,gas
Temperature :-29～180℃,-40～450℃
Body material：CF8 CF3 CF8M CF3M or others
Connection：Flange
Feature：ISO 5211 direct mount is optional

Product Description

2PC Full bore stainless steel ball valve introduction:
2PC Full bore stainless steel ball valve is 2 PC design, full bore bore,floating ball design with CF8 CF8M CF8M CF3M 4A 6A or other stainless steel material, 2PC Full bore stainless steel ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of 2PC Full bore stainless steel ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

2PC Full bore stainless steel ball valve Specification:

Product Name	2PC Full bore stainless steel ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), etc.
2. Size	1/2~16 inch ( DN15~DN400)
3. Port	Full Port
4. Working Pressure	150LB~600LB
5. Connection Ends	Flange
6. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

2PC Full bore stainless steel ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

2PC Full bore stainless steel ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
