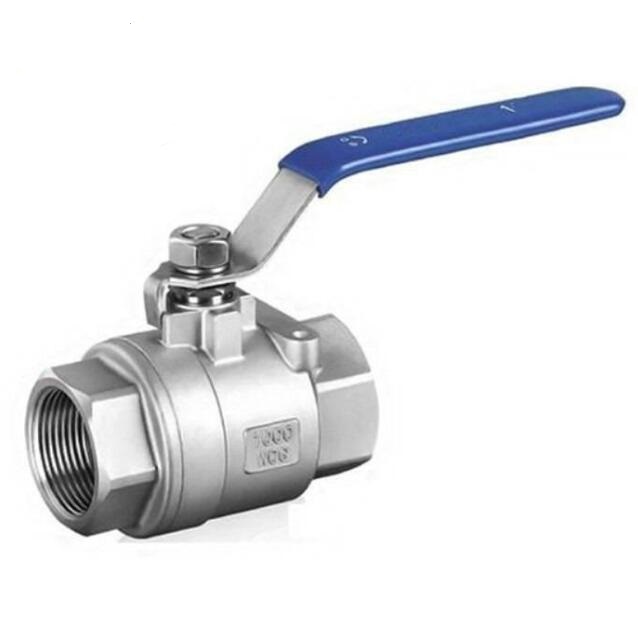

2PC Threaded 1000 2000 WOG SS ball valve

2PC Threaded 1000 2000 WOG SS ball valve introduction:
2PC Threaded 1000 2000 WOG SS ball valve is full bore bore,floating ball,threaded end design with 304 316 316L or other stainless steel material, 2PC Threaded 1000 2000 WOG SS ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of 2PC Threaded 1000 2000 WOG SS ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

2PC Threaded 1000 2000 WOG SS ball valve specification:

Product Name	2PC Threaded 1000 2000 WOG SS ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),  etc.
2. Size	1/2~4 inch ( DN15~DN100)
3. Port	Full Port
4. Working Pressure	1000 WOG,2000 WOG
5. Connection Ends	Threaded end, welded end, flange end
6. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

2PC Threaded 1000 2000 WOG SS ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

2PC Threaded 1000 2000 WOG SS ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
