PVDF True union pneumatic ball valve

PVDF True union pneumatic ball valve introducton

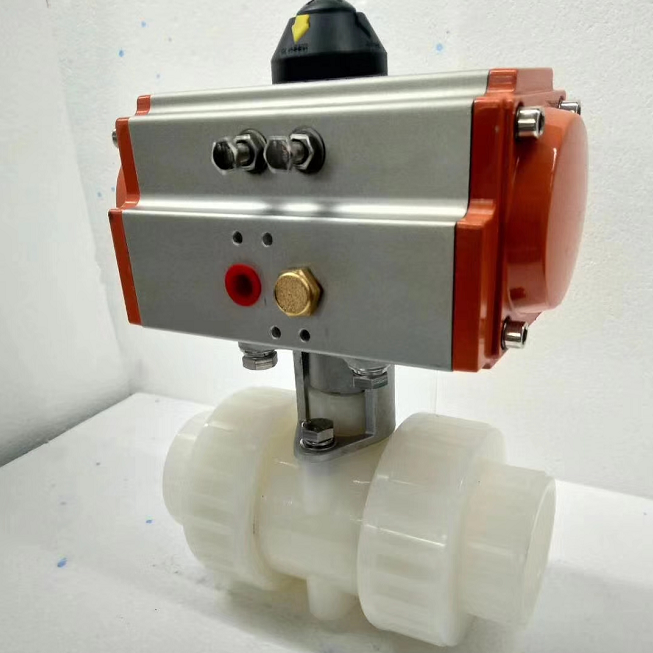

PVDF True union pneumatic ball valve is composed of PVDF plastic ball valve with true union end and double acting or single acting pneumatic actuator. PVDF True union pneumatic ball valve is suitable for a variety of light and heavy industrial conditions and construction piping.PVDF True union pneumatic ball valve is widely used in: electrical, paper, boiler, pharmaceutical, mining, chemical, mechanical equipment pipeline, electronic industry, urban construction and other fields.

PVDF True union pneumatic ball valve technical parameters
Drive: compressed air 5 ~ 7bar(with handwheel)
Nominal size: 15~50mm(union);
Nominal pressure: 0.6 ~ 1.6mpa
Applicable temperature: 0 ~ +60℃
Connection mode: by command
Ball valve structure: one - piece
Material of valve body:PVDF or PVC PPH RPP
Suitable medium: compatible chemical solvent for food industry

PVDF True union pneumatic ball valve accessories options
Response: also known as limit switch (APL310NAPL210N), Remote feedback switch Signal (Explosion proof)(APL410N ITS300)
Solenoid valve: double - action two five - way, single - action two three - way (explosion - proof)PLVD5/2
Triplet: it can stabilize the air source, filter and add lubricating oil AFC200 to the cylinder
Handwheel mechanism: Turn the handwheel mechanism to open and close the valve manually
Electric positioner: Input 4 ~ 20mA signal to realize valve adjustment function YT1000R
Note: Please refer to the selected pneumatic actuators for cylinder parameters

PVDF True union pneumatic ball valve feature
1.The range of use has structural characteristics: PVDF True union pneumatic ball valve is suitable for the closure of the transport process with corrosive medium.
2.All parts are assembled and molded by PVDF injection parts with excellent corrosion resistance.
3. The sealing ring adopts florine plastic.Excellent corrosion resistance and long service life.Flexible rotation and easy to use.The medium that goes is strong acid strong base liquid.
4.The integral ball valve has few leakage points, high strength and easy installation and disassembly of connected ball valves.
5. Installation and use of the PVDF True union pneumatic ball valve: when connecting both ends of the flange with the pipeline, the bolts should be tightened evenly to prevent leakage caused by flange deformation.Turn the handle clockwise to close and vice versa.
6.PVDF True union pneumatic ball valve can only be cut off flow, flow, should not have flow regulation.It is easy to scratch the surface of the ball with hard granular liquid.

PVDF True union pneumatic ball valve Advantages
1. The health indicators meet the national health standards
2. Compact and beautiful appearance
3. Body is light in weight and easy to install
4. The material is hygienic and non-toxic
5. Wear resistant, easy to remove, easy to maintain
6. Applicable fluids: water, air, oil, corrosive chemical liquids
7. Wide range of service temperature: -40℃ -140℃
8. Strength and toughness
9. Excellent chemical corrosion resistance
10. Flame retardant property is self-extinguishing
11. Low thermal conductivity, 1/200 of the steel
12. The content of heavy ions in the medium reaches the content of ultra-pure water

Plastic ball valve temperature range:
UPVC Suitable temperature: -10 °C~70 °C
CPVC Suitable temperature: -40 °C~95 °C
RPP Suitable temperature: -20 °C~90 °C
PVDF Suitable temperature: -40 °C~140 °C
PPH Suitable temperature：-14°C~95°C
