Pneumatic 3 way plastic ball valve introduction
Pneumatic 3 way plastic ball valve is composed of single acting or double acting pneumatic actuator and 3 way plastic ball valve with UPVC,CPVC,RPP,PVDF plastic material.Pneumatic 3 way plastic ball valve is light weight, strong corrosion resistance, Pneumatic 3 way plastic ball valve has been used in many fields, such as general pure water and drinking water pipeline system, drainage and sewage pipeline system, saline and seawater pipeline system, acid and alkali and chemical solution system and other industries, quality has been recognized by the majority of users.Pneumatic 3 way plastic ball valve is compact and beautiful appearance, light weight, easy to install, strong corrosion resistance, wide application range, sanitary and non-toxic material, wear resistance, easy to disassemble, simple and easy to maintain.Pneumatic 3 way plastic ball valve is compact structure and beautiful appearance,Body weight is light and easy to install,Strong corrosion resistance and wide application range,Material is hygienic and non-toxic.
Pneumatic 3 way plastic ball valve technical parameters
3 way ball valve drive: compressed air 5 ~ 7bar(with handwheel)
Nominal size: 15~100mm (flange);15~50mm(thread or weld);
Nominal pressure: 1.0 ~ 1.6mpa
3 way ball valve applicable temperature: according to the plastic materia;
Connection mode: flange or unnion
Ball valve structure: 3 way
Material of valve body: UPVC, CPVC, RPP,PVDF
Valve ball material: UPVC, CPVC, RPP,PVDF
Sealing material: PTFE
pneumatic ball valve Suitable medium: compatible chemical solvent for food industry
Pneumatic 3 way plastic ball valve accessories options
Response: also known as limit switch (APL310NAPL210N), Remote feedback switch Signal (Explosion proof)(APL410N ITS300)
Solenoid valve: double - action two five - way, single - action two three - way (explosion - proof)PLVD5/2
Triplet: it can stabilize the air source, filter and add lubricating oil AFC200 to the cylinder
Handwheel mechanism: Turn the handwheel mechanism to open and close the valve manually
Electric positioner: Input 4 ~ 20mA signal to realize valve adjustment function YT1000R
Note: Please refer to the selected
pneumatic ball valve actuators for cylinder parameters
Pneumatic 3 way plastic ball valve Main features
1. Compact and beautiful appearance
2. Pneumatic 3 way plastic
ball valvewith the strength and toughness, the pipe wall is smooth, smooth, fluid transport has a small friction resistance and adhesion.
3. Pneumatic 3 way plastic ball valvehas excellent chemical corrosion resistance, flame retardant performance for self-extinguishing.
4. Light weight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.Low thermal conductivity, about 1/200 of the steel.
5. Excellent aging resistance and uv resistance, so that the normal service life is much longer than other pipeline systems.
6. Pneumatic actuator is International standard size: output shaft slot and screw hole;The size of the top mounting hole conforms to NAMUR standard;The air source interface size conforms to NAMUR standard;The size of the mounting hole at the bottom is in line with IS05211, DIN3337 standards for convenient installation of solenoid valve limit switch and other accessories.
Plastic ball valve temperarure range according to the material:
UPVC Suitable temperature: -10 °C~70 °C
CPVC Suitable temperature: -40 °C~95 °C
RPP Suitable temperature: -20 °C~90 °C
PVDF Suitable temperature: -40 °C~140 °C
| Pneumatic 3 way plastic ball valve bare shaft |
 |
 |

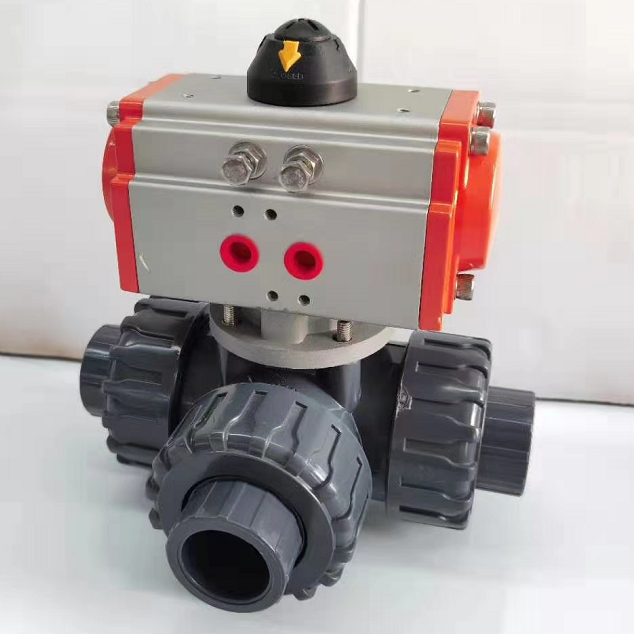

| Pneumatic 3 way plastic ball valve with pneumatic actuator |
 |
 |
|
