Ball valve manufacturer

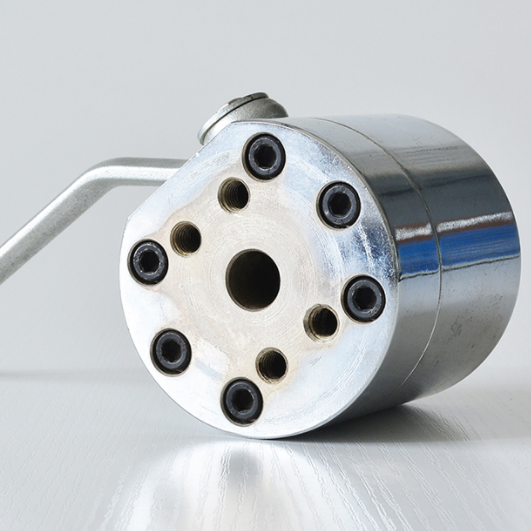

KH SAE Flange Hydraulic Ball Valve

Port size：DN15-DN150
Pressure：21Mpa, 31.5Mpa, 42Mpa
Structure：Trunnion structure
Medium：Hydraulic oil or others
Temperature :-20～100℃
Body material：Carbon steel,stainless steel,etc.
Connection：SAE Flange end
Feature：Customized order is acceptable.

Product Description

KH SAE Flange Hydraulic Ball Valve manufacturer, factory and supplier. KH SAE Flange Hydraulic Ball Valve is used for 21Mpa, 31.5Mpa or 42Mpa high pressure medium. KH SAE Flange Hydraulic Ball Valve is suitable for opening and closing of various pipelines in hydraulic system and chemical system. KH SAE Flange Hydraulic Ball Valve is switch fast, convenient, small fluid resistance, is the least of all valves in the fluid resistance as long as the stem rotation 90°, the ball valve to complete the full open or full close action, it is easy to achieve fast opening and closing.Stem seal is reliable.The stem only rotates when the ball valve opens and closes, so the stem packing seal is not easy to be broken, and the stem reverse seal sealing force increases with the increase of medium pressure. KH SAE Flange Hydraulic Ball Valve applicable medium: hydraulic oil, water - glycol, other mixed liquids.

Product name: KH SAE Flange Hydraulic Ball Valve
Product Model: KH
Drive mode: Manual
connection mode: SAE Flanged end
Structure: Straight through
seal structure: soft se
Pressure range: 21Mpa, 31.5Mpa,42Mpa
Nominal diameter: DN10-100
Common materials: carbon steel, stainless steel and other

KH SAE Flange Hydraulic Ball Valve is suitable for hydraulic system and chemical system of all kinds of pipeline, for opening and closing.
Nominal pressure: PN 31.5 mpa test pressure: PS 48MPa
working pressure: 31.5 mpa (21Mpa, 31.5Mpa,42Mpa for optional)
Operating temperature: -20~+80C
(Note: Please explain when ordering high temperature ball valves)
Applicable medium: hydraulic oil, water, glycol, other mixed liquids
