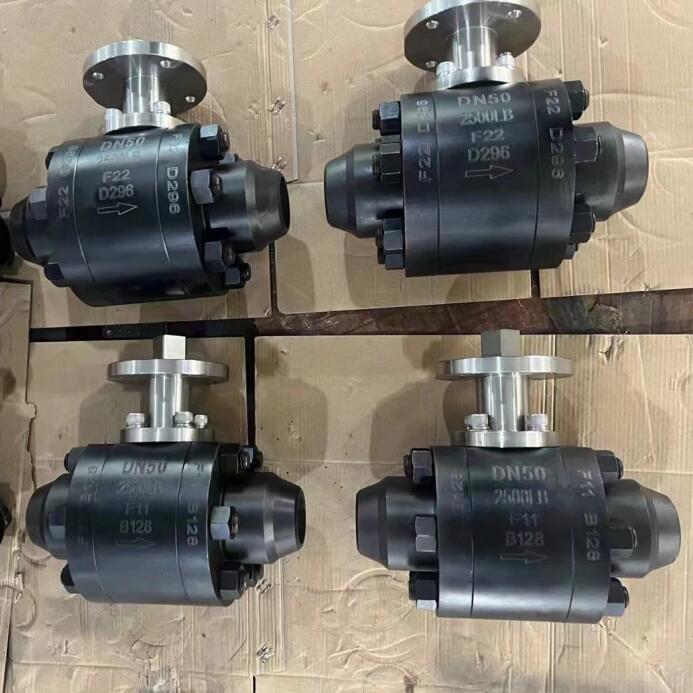

F11 F22 Class 2500 High Pressure Ball Valve

Port size：DN15-DN100
Pressure：CL150-CL2500
Structure：3PC,Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-40～450℃
Body material：F11 F22 or others
Connection：Flange,Thread,SW,BW is optional
Feature：Customized order is acceptable

Product Description

F11 F22 Class 2500 High Pressure ball valve manufacturer, factory and supplier. F11 F22 Class 2500 High Pressure ball valve is 3 piece metal seated structure for high temperature service, full bore with BW end,threaded end or socket welded end is optional for high pressure service.F11 F22 Class 2500 High Pressure ball valve is a kind of high pressure service valve,which is mainly used to cut off, distribution and change the flow direction of the medium. F11 F22 Class 2500 High Pressure ball valve most suitable for switch and cut off valve use with manual, pneumatic,electric control,which is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

F11 F22 Class 2500 High Pressure ball valve specification:
1.Full port, 1/2-4"
2. Nonimal pressure.:All range high pressure rating
3. Working temperature.:-29～180℃,-40～450℃
4. Forged steel:F11 F22 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

F11 F22 Class 2500 High Pressure ball valve standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
