Ball valve manufacturer

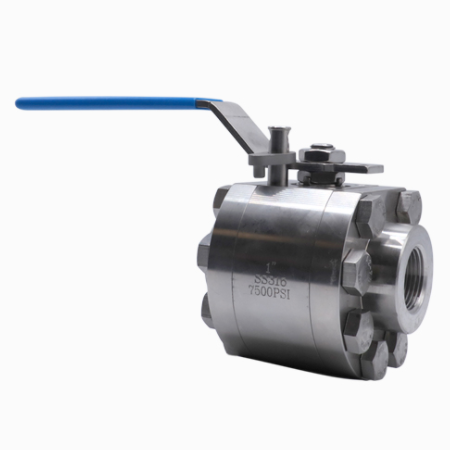

7500 PSI High pressure threaded ball valve

  • Port size:1/2″ to 4″,DN15-DN100
  • Pressure:7500 PSI or others
  • Structure:3 PCS, Full bore
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-20 to 180 ℃ for soft seat, -40 to 450℃ for metal seat.
  • Body material:A105,LF2,F304,F316 or other forged steel
  • Connection:SW, BW, NPT, Flanged or others
  • Feature:Different pressure is optional
China High pressure ball valve Manufacturer, Factory and Supplier for 7500 PSI High pressure threaded ball valve with 3PC, full bore, floating ball structure. 7500 PSI High pressure threaded ball valve is mainly used for oil and natural gas and urban gas piping systems. 7500 PSI High pressure forged ball valve has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 7500 PSI High pressure threaded ball valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

7500 PSI High pressure threaded ball valve Feature:
1. All parts are forgings
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator
.

7500 PSI High pressure forged ball valve Specification:
Product Name 7500 PSI High pressure threaded ball valve
1. Material A105,F304,F316 etc.
2. Size 1/4~4 inch ( DN10~DN100)
3. Port Full Port
4. Working Pressure 7500 PSI or others
5. Connection Ends Threaded end,Socket weld,Butt weld,Flanged end is optional
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

7500 PSI High pressure threaded ball valve material:
NO. Part Name              Carbon steel ASTM Stainless steel ASTM
Type A105N Type F304(L) Type F316(L)
1, 2 Body/Bonnet ASTMA105 N A182 F304(L) A182 F316(L)
3 Bolt A193B7 A193 B8 A193 B8M
4 Nut A1942H A1948 A194 8M
5,8 Seal ring /Gasket RTFE+1010/PPL
6 Ball A182F304 A182 F304(L) A182 F316(L)
7 Stem A182F410 A182 F304(L) A182 F316(L)
9,10 Stem Packing PTFE+Cu Power/Nylon 1010/PPL
11 Gland A182F410 A182 F304(L) A182 F316(L)
12 Spring 65Mn
13 Nut A194B7 A1948 A1948
14 Wrench Q235A
15 Pin A194B7 F316 F316
Note: Other materials are available upon request.
