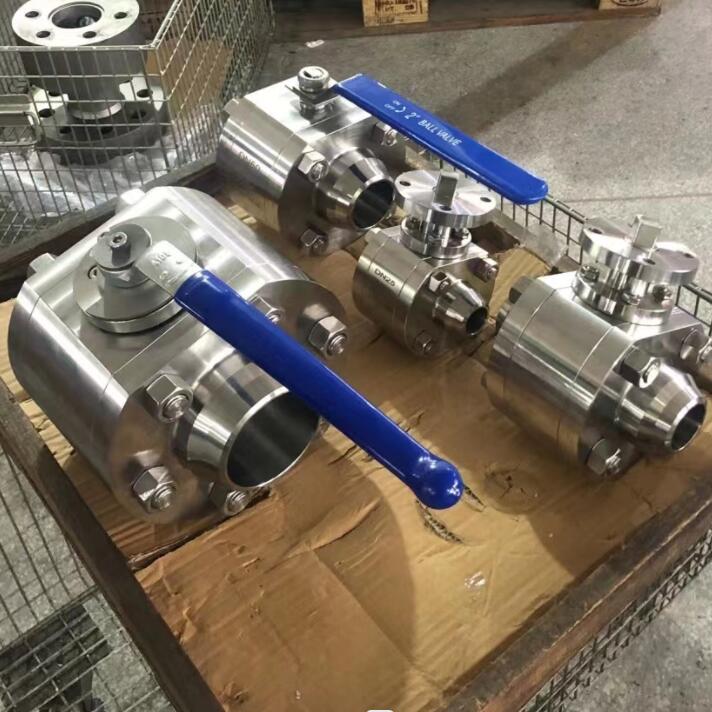

Butt Welded End High Pressure Ball Valve

Port size：1/2"~2" (DN15~DN50)
Pressure：PN16-PN420 CL150-CL2500
Structure：2PC or 3PC Structure
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Butt Welded, or Socket welded, Thread is optional
Feature：Customized order is acceptable

Product Description

Butt Welded End High pressure ball valve is 2 piece or 3 piece structure, full bore with BW end,threaded end or socket welded end is optional for high pressure service, zero leakage with good seal performance. Butt Welded End High pressure ball valve is a kind of high pressure service valve with A105 F304 F316 or other forged steel material. Butt Welded End High pressure ball valve in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium. Butt Welded End High pressure ball valve most suitable for switch and cut off valve use with manual, pneumatic,electric control,which is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

Butt Welded End High pressure ball valve specification:
1.Full port, 1/2-2"
2. Nonimal pressure.:All range high pressure rating
3. Working temperature.:-29～180℃,-40～450℃
4. Forged steel:A105,F304 ,F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

Butt Welded End High pressure ball valve standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
