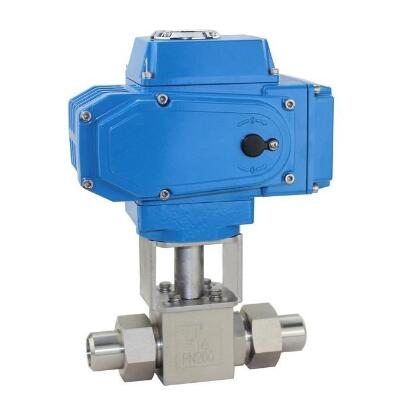

Electric stainless steel butt weld ball valve

Port size：1/2'' ~ 4''( 15mm ~ 100mm)
Pressure：PN16 ~ 100,150LB ~ 600LB
Structure：Full bore
Medium：Water,oil,steam,gas
Temperature :-29～180℃,-40～450℃,
Body material：WCB CF8 CF3 CF8M CF3M or others
Connection：BW,SW is optional
Feature：Different function actuator is optional

Product Description

Electric stainless steel butt weld ball valve introduction:
Electric stainless steel butt weld ball valve body casting adopt advanced technology with reasonable structure and beautiful shape;Electric stainless steel butt weld ball valve seat adopts elastic sealing structure, reliable sealing, easy to open and close;The electric stainless steel butt weld ball valve stem adopts the down-assembly structure with inverted seal, and the ball valve stem will not be flushed out when the valve chamber increases pressure abnormally. Electric stainless steel butt weld ball valve connection form also butt welding (BW) socket welding (SW), which can be equipped with international standard ISO 5211 high platform and locking device.

Electric stainless steel butt weld ball valve is small volume, composed of three parts of the valve shell, through four longer bolts from the two ends of the middle valve body and ball valve.The electric stainless steel butt weld ball valve advantage is that the maintenance dis-assembly does not need to remove pipeline thread, directly remove four bolts, electric ball valve body middle part can be removed.It is suitable for small volume and narrow space of thousand light industrial machinery.With small size, simple form a complete set, large circulation capacity, especially suitable for thousands of media is thick, together with particles, fiber properties of the occasion.Electric stainless steel butt weld ball valve is widely used in industrial automatic control system of food, environmental protection, light industry, petroleum, paper making, chemical industry, teaching and scientific research equipment, electric power and other industries.

Electric stainless steel butt weld ball valve technical param:

Optional functions of electric actuator	switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator	QM, QC series
Voltage	AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter	DN15mm ~ DN100mm
Nominal pressure	PN1.0MPa~PN1.6MPa
Applicable temperature	PTEE:-30~ +120℃ PPL:≦350℃ metal seal:≦450℃
Connection mode	thread
electric ball valve Body material	304, 316, 316L
electric ball valve ball plate material	304, 316, 316L
electric ball valve Seat lining	PTEE, PPL, metal seal
Suitable medium	water, petroleum, acid, viscous fluid, slurry medium, etc.

Electric stainless steel butt weld ball valve actuator information:

specifications	QC-5	QC-10	QC-16	QC-25	QC-50	QC-100	QC-200
voltage	AC220 50/60HZ （AC24V, AC110V, AC380V,DC24V, DC220V）
torque	50N.M	100N.M	160N.M	250N.M	500N.M	1000N.M	2000N.M
time	5,10,30	5,10,30,60	5,15,30,60	5,15,30,60	5,15,30,60	60	100
power of motor	15W/H	23W/H	23W/H	50W/H	90W/H	100W/H	100W/H
working current	0.25A	0.6A	0.7A	0.8A	1.2A	1.3A	1.3A
weight	2.5KG	3.7KG	3.7KG	6.8KG	8.0KG	12KG	12KG
rotation angle	0~360°	0~90°
ambient temperature	-30℃~ +60℃
Withstand voltage	1500VAC/1min
levels of protection	IP-65
spacing	Electrical machinery
manual operation	Attached handle
Installation angle	Arbitrary angle

· Tip1: “time”- The time it takes to form from 0 to 90 degrees “rotation angle”-The angle is adjustable
· Tip2:Selection and installation function：1.Heating dehumidifier；2.Over-torque protector；3.4-20mA,0-10V,1-5V intelligent regulating type
