Ball valve manufacturer

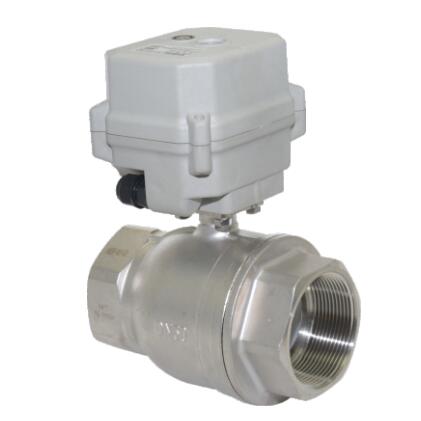

2 Way SS304 SS316 Modulating Ball Valve

Port size：1/4"~2" (DN6~DN50)
Pressure：PN10-PN16 CL150
Structure：2PC or 3PC Structure
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：304 316 or other stainless steel
Connection：Threaded end or others
Feature：Modulating type electric actuator

Product Description

2 Way SS304 SS316 Modulating Ball Valve Manufacturer, Factory And Supplier. 2 Way SS304 SS316 Modulating Ball Valve is composed of 2 PC or 3 PC structure ball valve and regulating electric actuator, working voltage: AC110V~230V, DC9~24V, size range from DN6~DN50; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. 2 Way SS304 SS316 Modulating Ball Valve is applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries.

2 Way SS304 SS316 Modulating Ball Valve Feature:
1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.

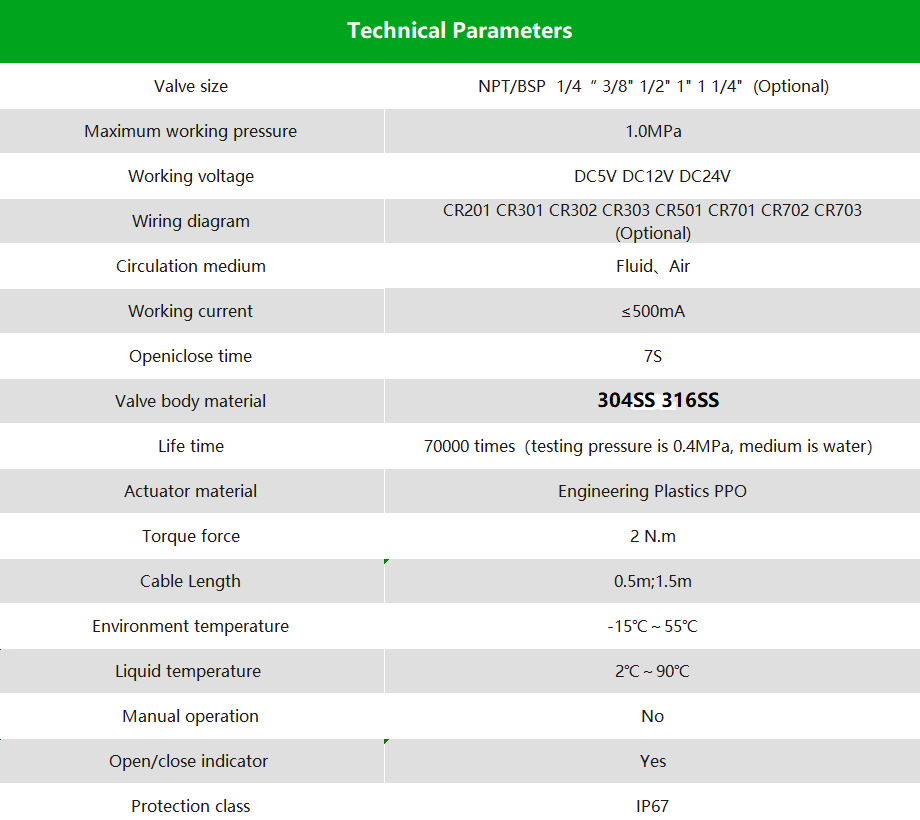

2 Way SS304 SS316 Modulating Ball Valve performance:

Remark: The torque is according to the size, if parameter is different from above parameter, please contact us.
