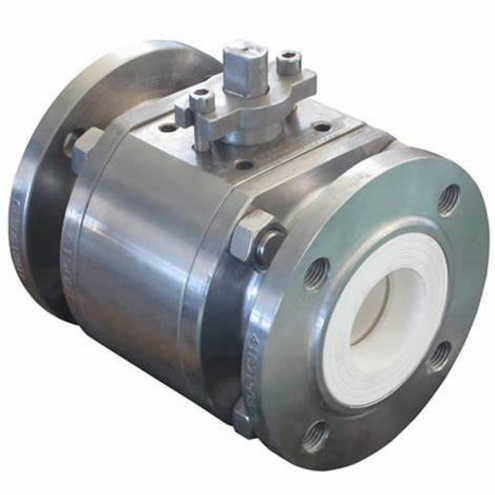

Fully ceramic lined ball valve

Fully ceramic lined ball valve introduction
Fully ceramic lined ball valve has corrosion resistance, high temperature resistance, wear resistance and erosion resistance.Fully ceramic lined ball valve is used in conveying system of acid, alkali and salt gas, liquid, high temperature steam and mud in petrochemical, metallurgical, papermaking, power station and oil refining industries.Fully ceramic lined ball valve is a strong corrosion of titanium valves, monel valve replacement products.Fully ceramic lined ball valve has the advantages of high economy and long use.The driving mode is manual, pneumatic, pneumatic - spring reset, electric, etc.And can design ceramic ball valve according to user's requirement. Fully ceramic lined ball valve is suitable for acid, alkali, salt liquid, gas medium environment, hard sealing ball valve is suitable for with particle, fiber medium environment.

Fully ceramic lined ball valve technical parameters
Nominal size of ball valve: DN15 ~ DN200 (0.5 "~ 8")
Pressure grade: PN10 ~ PN40
ANSI 150 ~ 300LB (lb)
Body material: Carbon steel WCB, A105
Stainless steel 304, 316, 304L, 316L
Ball valve inner material: structural ceramics
Connection: Flange connection
Drive mode: manual,pneumatic, electric actuator
Test pressure: strength test 1.5 times nominal pressure
Seal test 1.1 times nominal pressure
Ash test 1 times the nominal pressure
Ceramic ball valve service temperature: -20 ~ 300℃

Fully ceramic lined ball valve performance characteristics
1. The parts in contact with the medium are structural ceramic materials with high chemical stability and hardness.Therefore, the Fully ceramic lined ball valve has abrasion resistance, corrosion resistance, erosion resistance performance, and good insulation, small thermal expansion.
2. The ball of Fully ceramic lined ball valve adopts grinding equipment and process, ball roundness is high, and the seat after grinding, using Zr02 ceramic self-smoothness, can obtain good sealing performance.
3, Changed the metal hard seal ball valve leakage, torque, sealing surface is not corrosion resistant shortcomings.
4. Good wear resistance of ceramics, so that the Fully ceramic lined ball valve can be used long.
5. Fully ceramic lined ball valve is for high hardness of the particle medium, or soft particles but also corrosive medium.

Fully ceramic lined ball valve application
Thermal power plants, steel, petroleum, chemical, paper, biological engineering, and other industries.Fully ceramic lined ball valve is suitable for boiler steam, lime slurry, seawater transportation containing particles, high hardness particles, soft particles with corrosive media, powder, flue gas desulfurization, ash, slag discharge, water treatment.Change the material according to the purpose,Fully ceramic lined ball valve can be used in different temperature and medium.
