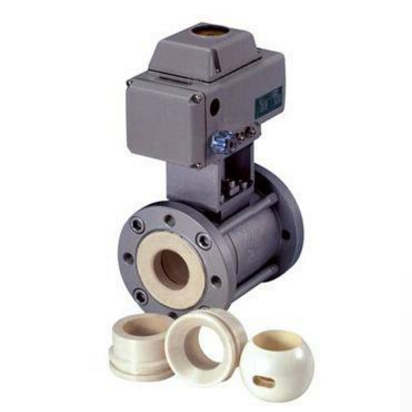

Electric motorized ceramic ball valve

Electric motorized ceramic ball valve introduction:
Electric motorized ceramic ball valve all parts in contact with the medium are structural ceramic materials, the chemical stability and hardness of Electric motorized ceramic ball valve is extremely high (Rockwell hardness HRC90), second only to diamond. Electric motorized ceramic ball valve has very high wear resistance, corrosion resistance, erosion resistance performance, and good insulation, small thermal expansion.The ball of Electric motorized ceramic ball valve is manufactured by advanced grinding equipment and technology, with high roundness precision and good surface quality. After grinding against the seat, the Zr02 ceramics can be used to obtain good sealing performance.Electric motorized ceramic ball valve completely changed the metal hard sealing ball valve easy to leak, torque, sealing surface is not corrosion resistant shortcomings.

Electric motorized ceramic ball valve feature:
Full lining ceramics inside the ball valve body is suitable for wear harsh pipeline hardness particles and corrosive medium durability/ultra high cost performance
Electric motorized ceramic ball valve Applicable place: chemical industry and other strong corrosion occasion product features corrosion resistance, wear resistance and high hardness
Service life: 2-4 times that of titanium alloy valve and Monel valve
Main performance indexes of imported electric ceramic ball valve:
Nominal diameter: DN15 ~ DN300
Service temperature: -20℃ ~ 300℃
Pressure class: PN1.6mpa ~ PN4.0Mpa or ANSI150 ~ 300LB
Material of valve body: WCB, SUS304, SUS316
Ball valve inner material: structural ceramics
Stem material: 316/316L stainless steel, HC alloy, Monel alloy, structural ceramics
Length standard: GB/T 12221-2005;ASME B16.10-2000.
Flange standard: GB/T 9113.1;JB/T 79.1 1994;ASMEB16.5-2009;JIS B2220-2004
Electric motorized ceramic ball valve application: power plant desulfurization denitrification, limestone slurry transportation, petrochemical industry, papermaking industry wastewater treatment and other strong corrosive medium and containing solid particles of the process occasions.

Main technical parameters of electric actuator for Electric motorized ceramic ball valve:
Power supply voltage:  AC220V, AC380V, etc
Control mode: switching type (two-digit cut off), regulating type (4 ~ 20mA signal)
Output torque: 50NM ~ 2000 NM
Optional functions: switch type, passive contact type, open signal type, intelligent type
Range of action: 0 ~ 90°±5°
Action time: 9 seconds /15 seconds /30 seconds /60 seconds
Manual operation: Equipped with handle operation
Limit: electrical and mechanical double limit

Optional functions of electric actuator for Electric motorized ceramic ball valve:
Explosion-proof function/protection grade: quite IP65 (or IP67), flame-proof marks: Exd Ⅱ BT4
Adjustment function: Input signal 4-20mA, 1-5V, 0-10V;Output signal :4-20mA, 1-5V, 0-10V
Manual function: Manual device can be assembled, valve opening and valve closing functions
Relevant temperature: Ambient temperature: -25 ~ +70℃, ambient humidity: ≤95%
