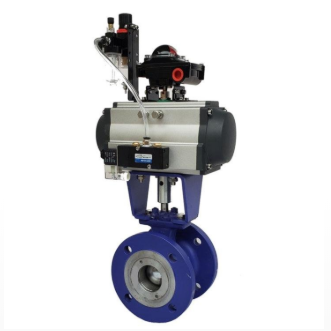

Pneumatic V port segment ball valve

Pneumatic V port segment ball valve introduction:
Pneumatic V port segment ball valve is a rotary regulating ball valve, for the pneumatic unit combination of instruments in the execution unit, Pneumatic V port segment ball valve used at temperature (-40 ~ 200℃) and high temperature (-60 ~ 450℃).The Pneumatic V port segment ball valve features high transmission efficiency, large thrust, good sealing performance, large rated flow coefficient and strong interchangeability of parts.Because the Pneumatic V port segment ball valve trim and the seat is closed when the "shear" action, Pneumatic V port segment ball valve can be especially used in the medium containing fiber filaments, particles or very high viscosity conditions.Pneumatic V port segment ball valve is widely used in papermaking, petroleum, chemical, pharmaceutical, metallurgy, light textile, sewage treatment and other production departments of gas, steam, liquid transport pipeline medium flow rate, pressure, liquid level, temperature regulation, in order to achieve automatic control process production process according to certain specifications.


Pneumatic V port segment ball valve pneumatic actuator requirement :

Model Spec	Pneumatic Piston	Crank Arm Piston
Power/Air Supply	Air supply: 400~600Kpa	Air supply: 400~600Kpa
Joint	Rc1/4”, Rc3/8”, Rc1/2”,	----------
Direct action	Air increase, valve close	Signal increase, valve close
Reverse action	Air increase, valve open	Signal increase, valve open
Double action	According to signal converting
Ambient Temp	-30~+70℃	-30~+70℃
Standard Coating	Yellow	------------
Accessories	Solenoid valve, Limited switch Air filter, locker, etc.	Solenoid valve, Limited switch Air filter, locker, etc.

Pneumatic V port segment ball valve performance:

Rated CV	According to “Flow Characteristic”
Characteristic	Equal to EQP
Ratio	100:1
Leakage	ANSI/FCI70-2 和 IEC60534-4 Class VI-Soft; Class IV – metal seat
Hysteresis	3% (Positioner), 1% (Without positioner)
Linear	5% (Positioner), 1% (Without positioner)

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
