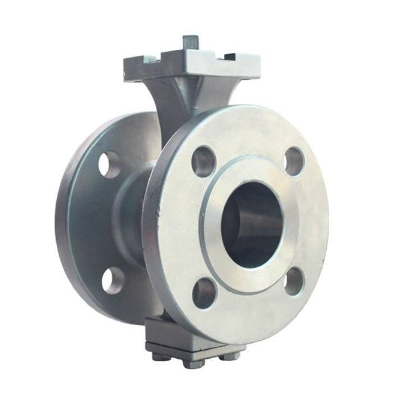

ISO 5211 mounting pad segmented ball valve structure introduction:
ISO 5211 mounting pad segmented ball valve is direct mount design with ISO 5211 mounting pad for pneumatic,electric,and manual operation, ISO 5211 mounting pad segmented ball valve has the V type gap in the valve plug which will do wedge-shaped sheared action when the ISO 5211 mounting pad segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat.ISO 5211 mounting pad segmented ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
ISO 5211 mounting pad segmented ball valve equipped with pneumatic or electric actuator can meet various control requirements, ISO 5211 mounting pad segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.
Structure |
Segment ball |
Nominal Diameter |
Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700) |
Pressure Rating |
ASME Class 150 ~ CLASS 300/ PN10-PN40 |
Connection |
Flange Type (RF、RTJ、FM)、Wafer type |
ISO 5211 mounting pad segmented ball valve design feature:
· Hard treated trim parts, which is grinded, polished, of high degree of finishing and wear resistance.
· The cavity is designed based on straight through and streamline type, which can prevent blocking up and improve the steady of action.
· Shearing action ball and the valve can clean itself, which is suitable for various kinds of gas and liquid and especially for the liquid of containing paper pulp, sewage and containing solid particle.
ISO 5211 mounting pad segmented ball valve structure:
ISO 5211 mounting pad segmented ball valve Parts details list:
No |
Name |
Qty |
Material |
1 |
Valve body |
1 |
WCB |
CF8 |
CF8M |
2 |
Segment ball |
1 |
CF8+HCr |
CF8+HCr |
CF8M+HCr |
3 |
Cylindrical pin |
2 |
304 |
304 |
316 |
4 |
Seat |
1 |
304+Hard Alloy |
304+Hard Alloy |
316 |
5 |
Spring |
1 |
316 |
316 |
316 |
6 |
O ring |
1 |
Fluororubber |
Fluororubber |
Fluororubber |
7 |
Self lubricant bearing |
1 |
304+PTFE |
304+PTFE |
316+PTFE |
8 |
Down stem |
1 |
20Cr13 |
304 |
316 |
9 |
O Ring |
1 |
Fluororubber |
Fluororubber |
Fluororubber |
10 |
Back gland |
1 |
WCB |
CF8 |
CF8M |
11 |
Ring gasket |
1 |
PTFE |
PTFE |
PTFE |
12 |
Adjustable gasket |
1 |
PTFE |
PTFE |
PTFE |
13 |
Flat gasket |
4 |
Q235 |
304 |
304 |
14 |
Bolt |
2 |
25# |
304 |
304 |
15 |
Double screw bolt |
1 |
25# |
304 |
304 |
16 |
Self lubricant bearing |
1 |
304+PTFE |
304+PTFE |
316+PTFE |
17 |
Flat key |
1 |
20Cr13 |
304 |
316 |
18 |
Down packing |
1 |
PTFE |
PTFE |
PTFE |
19 |
Middle packing |
1 set |
PTFE |
PTFE |
PTFE |
20 |
Up packing |
1 |
PTFE |
PTFE |
PTFE |
21 |
Packing gland |
1 |
WCB |
CF8 |
CF8M |
22 |
Bolt |
2 |
35# |
304 |
304 |
23 |
Up stem |
1 |
20Cr13 |
304 |
316 |
ISO 5211 mounting pad segmented ball valve flange type dimension:
ISO 5211 mounting pad segmented ball valve flange type dimension as below: Unit: mm
DN |
A |
H |
B |
b1 |
f |
C |
T |
Y |
L |
L |
0d |
h |
S |
K |
M |
Z |
Tor. |
25 |
102 |
51 |
115 |
16 |
2 |
38 |
81 |
73 |
102 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
32 |
32 |
102 |
51 |
140 |
18 |
2 |
45 |
86 |
78 |
100 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
40 |
40 |
114 |
57 |
150 |
18 |
2 |
50 |
90 |
80 |
102 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
76 |
50 |
124 |
60 |
165 |
20 |
2 |
62 |
93 |
90 |
104 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
90 |
65 |
145 |
70 |
185 |
20 |
2 |
73 |
108 |
105 |
102 |
75 |
16 |
35 |
75 |
28 |
2-M10 |
5 |
100 |
80 |
165 |
75 |
200 |
20 |
2 |
90 |
123 |
118 |
110 |
75 |
20 |
35 |
90 |
28 |
4-M10 |
6 |
140 |
100 |
194 |
92 |
220 |
22 |
2 |
115 |
138 |
130 |
108 |
75 |
20 |
35 |
90 |
28 |
4-M10 |
6 |
150 |
125 |
194 |
97 |
250 |
22 |
2 |
134 |
148 |
145 |
110 |
80 |
25 |
40 |
90 |
40 |
4-M10 |
8 |
200 |
150 |
229 |
110 |
285 |
24 |
2 |
164 |
170 |
170 |
124 |
94 |
30 |
50 |
110 |
40 |
4-M12 |
8 |
300 |
200 |
243 |
120 |
340 |
24 |
2 |
206 |
200 |
201 |
124 |
94 |
30 |
50 |
110 |
40 |
4-M12 |
8 |
500 |
250 |
297 |
148 |
405 |
26 |
2 |
260 |
240 |
237 |
140 |
98 |
40 |
60 |
135 |
40 |
4-M16 |
12 |
800 |
300 |
338 |
190 |
460 |
28 |
2 |
316 |
286 |
282 |
140 |
98 |
40 |
60 |
135 |
64 |
4-M16 |
12 |
1400 |
350 |
400 |
221 |
520 |
30 |
2 |
372 |
330 |
337 |
170 |
125 |
50 |
60 |
140 |
80 |
4-M16 |
14 |
2000 |
400 |
400 |
220 |
580 |
32 |
2 |
420 |
367 |
372 |
212 |
172 |
60 |
80 |
170 |
90 |
4-M16 |
18 |
2900 |
450 |
520 |
290 |
640 |
40 |
2 |
470 |
422 |
432 |
240 |
172 |
70 |
90 |
190 |
90 |
4-M16 |
20 |
3400 |
500 |
600 |
320 |
715 |
44 |
2 |
516 |
490 |
498 |
250 |
180 |
80 |
100 |
190 |
/ |
4-M16 |
22 |
5000 |
ISO 5211 mounting pad segmented ball valve wafer type dimension:
ISO 5211 mounting pad segmented ball valve wafer type dimension as below: Unit: mm
DN |
A |
B |
C |
T |
Y |
L |
T |
φ |
d |
h |
S |
K |
M |
Z |
Tor. |
25 |
50 |
30 |
68 |
38 |
81 |
73 |
102 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
32 |
32 |
60 |
35 |
76 |
45 |
86 |
78 |
100 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
40 |
40 |
60 |
35 |
84 |
50 |
90 |
80 |
102 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
76 |
50 |
75 |
43 |
100 |
62 |
93 |
90 |
104 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
90 |
65 |
100 |
50 |
118 |
73 |
108 |
105 |
102 |
75 |
16 |
35 |
75 |
/ |
2-M10 |
5 |
100 |
80 |
100 |
57 |
132 |
90 |
123 |
118 |
110 |
75 |
20 |
35 |
90 |
28 |
4-M10 |
6 |
140 |
100 |
115 |
65 |
158 |
115 |
138 |
130 |
108 |
75 |
20 |
35 |
90 |
28 |
4-M10 |
6 |
150 |
125 |
129 |
78 |
184 |
134 |
148 |
145 |
110 |
80 |
25 |
40 |
90 |
28 |
4-M10 |
8 |
200 |
150 |
160 |
95 |
216 |
164 |
170 |
170 |
124 |
94 |
30 |
50 |
110 |
40 |
4-M12 |
8 |
300 |
200 |
200 |
120 |
268 |
206 |
200 |
201 |
124 |
94 |
30 |
50 |
110 |
40 |
4-M12 |
8 |
500 |
250 |
240 |
148 |
326 |
260 |
240 |
237 |
140 |
98 |
40 |
60 |
135 |
40 |
4-M16 |
12 |
800 |
