What is Y type 3 way ball valve?
Y type 3 way ball valve 120 degree Angle,135 degree Angle) divided into 120° and 135°   body structure, Y type 3 way ball valve flow path is flat, small fluid resistance, strong flow capacity.When switching medium has no retention, it will not cause secondary pollution.Y type 3 way ball valve is widely used in powder conveying industry.Y type 3 way ball valve can be matched with electric actuators and pneumatic actuators for automatic control.

The ball of Y type 3 way ball valve is driven by the electric actuator or pneumatic actuator to rotate 90 ° to achieve the purpose of reversing control, or to achieve the purpose of reversing and shunt mixing control through 180 ° rotation action.The pipeline connected with the flange can maintain good sealing performance, facilitate maintenance and replacement, and facilitate closure of the pipeline.(The user needs to provide the y type 3 way ball valve body structure first when ordering), Y type 3way ball valve is smooth flow passage, small fluid resistance, strong flow capacity.

Y type 3 way ball valve structure feature
1. The flow passage forms a 120 degree switch or 135 degree switch, with smooth flow passage, small resistance and strong flow capacity.
2. According to the actual working conditions, the ball center and the seat seal can be respectively used soft seal, spray welding nickel base alloy (hardness greater than HRC60), supersonic tungsten-cobalt alloy (hardness greater than HRC70) and special hardening materials and other advanced technologies.
3. Soft seal temperature: 250 ° C.
4. Hard sealed carbon steel not exceeding 425 ° C and stainless steel not exceeding 450 ° C.

Name：	Y type 3 way ball valve	Mode：	Q42F,Q642F,Q942F
Driven mode：	Manual,pneumatic,electric	Connection：	Flange
Structure form：	Y type	Seal structure：	Soft seat,metal seat
Pressure range ：	1.6MPa-6.4MPa, 150LB-600B	Size：	DN50-300,2’’-12’’
Material：	Carbon steel,stainless steel,etc.	Remark	Accept customized products

Y type 3 way ball valve technical parameter
Nominal diameter: DN50-300,2’’-12’’
Material of valve body: WCB, 304, 316 or others
Connection: Flange type
Pressure class: PN1.6-4.0Mpa,150LB-600B
Structure: Y 120 degrees, Y 135 degrees
Seat seal: PTFE: -30℃ ~ 180℃
PPL: -30℃ ~ 220℃
Hard seal: -30℃ ~ 450℃ Cemented carbide: surface spray welding, tungsten nitride
Ball material: 304, 316, 316;The surface of hard sealed ball core is spray welding and tungsten nitride
Ball valve stem material: 304
Ball valve applicable medium: powder, liquid water, gas, etc
No retention of medium
Leakage: Zero leakage

What is pneumatic Y type 3 way ball valve?

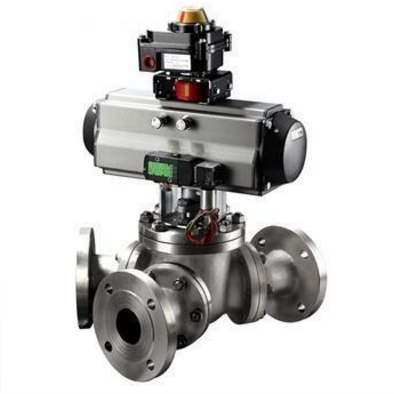

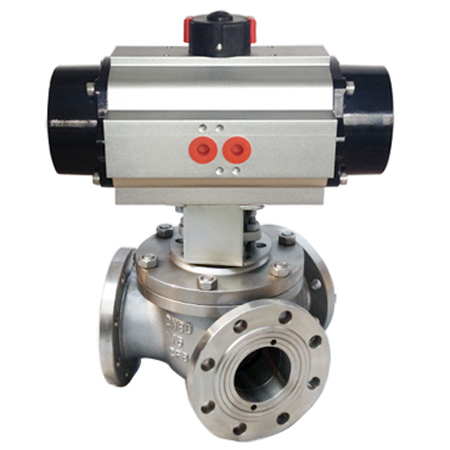

Pneumatic Y type 3 way ball valve with Pneumatic actuator:
Double action: ventilation on, ventilation off, air source fault to maintain the current position
Single - operation air - off: air - on, air - off, air - source fault - off
Single - operation air - off: air - off, air - break - off, air - source fault - open
Optional accessories: reversing solenoid valve, limit switch, air filter, positioner, handwheel mechanism, position protection valve
The Pneumatic ball valve electrical part can be selected for explosion protection

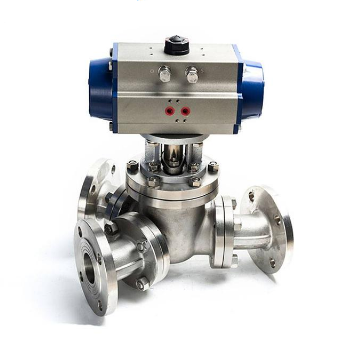

Pneumatic Y type 3 way ball valve with different type pneumatic actuator:

What is electric Y type 3 way ball valve?

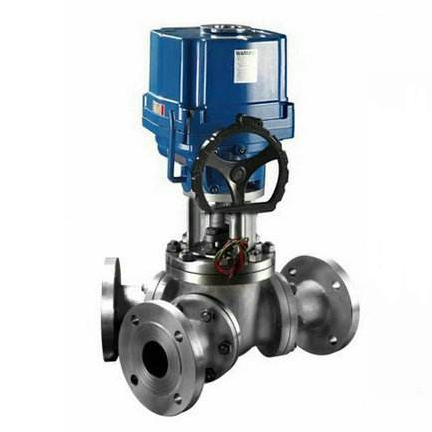

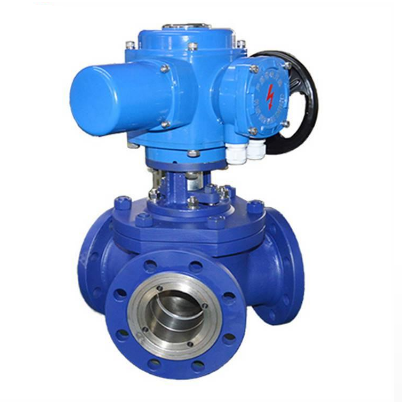

Electric Y type 3 way ball valve with Electric actuator
Switch type: feedback signal: passive contact signal \4-20mA\ resistance signal
Adjustable type: input 4-20mA\0-10V\1-5V;Feedback signal: 4-20MA \0-10V\1-5V
Voltage: AC220V\380V\110V\24V, DC12V\24V, etc.Special voltages can be customized
Explosion-proof grade: optional EXdIIBT4
Electric ball valve IP Class:IP67

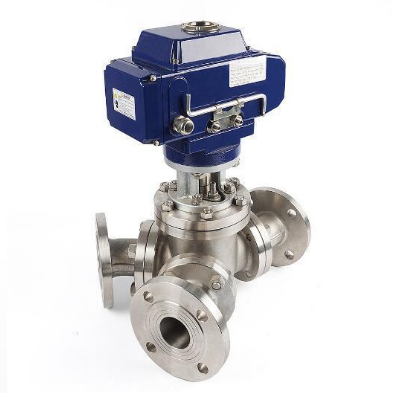

Electric Y type 3 way ball valve with different type electric actuator:
What is 120 degree Y type 3 way ball valve?
The three channels of y type 3 way ball valve are designed to be included at an Angle of 120°each other, which can realize two different flow direction switching through the rotation of the ball between 120°.120 degree Y type 3 way ball valve includes the body, which is equipped with a sphere and has three port flow channel, the ball is equipped with open at both ends of the connection channel, the body of the import and export any move with the sphere's turn with connection channel conduction or closed, connecting channel any radial plane is and the port diameter and circle, the ends of the connection channel opening radial cross section method to the Angle is 120 °, fluid channel is equipped with three of the seat, seat hole structure of port, the seat toward one end of the sphere and sphere has a compact between the outer surface of blocks,The side of the pressing block toward the ball is provided with a contact surface matched with the surface of the outside circumference of the ball, and the other side of the pressing block is provided with an internal sealing structure between the seat.The 120 degree Y type 3 way ball valve can realize two different flow direction switch, and the sealing structure is firm and durable, long service life, small fluid flow resistance, easy to clean the tee pipe.

120 degree Y type 3 way ball valve structure	120 degree Y type 3 way ball valve side face	120 degree Y type 3 way ball valve top face

120 degree Y type 3 way ball valve dimension( on base of PN10, If you need other pressure and standard, please consult us)

DN	L	D	K	R	C	f	n-d
50	110	160/165	125	100	20	3	4-18
65	130	180/185	145	120	20	3	4-18
80	150	195/200	160	135	20	3	8-18
100	170	215/220	180	155	22	3	8-18
125	190	245/250	210	185	22	3	8-18
150	210	280/285	240	210	24	3	8-23
200	245	335/340	295	265	24	3	12-23
250	290	405	355	320	30	3	12-25

Electric Y type 3 way ball valve electric actuator switch type: feedback signal: passive contact signal 4-20mA resistance signal Regulator type: input signal 4-20mA,0-10V,1-5V;Feedback signal: 4-20mA,0-10V,1-5V, Voltage: AC220V,AC380V,AC110V,DC24V, DC12V,DC24V, etc.Special voltage can be customized, explosion-proof grade: optional explosion-proof EXdIIBT4 actuators.

Pneumatic Y type 3 way ball valve pneumatic actuators according to the action type divided into single action and double action two types, the single action type is characterized by once the power source failure, the ball valve will be in the control system requirements of the state. double functions: ventilation on, ventilation off, air source fault to maintain the current position,which can install reversing solenoid valve, limit switch, air filter, positioner, handwheel mechanism, position protection valve accessories according to client’s requirement.

What is 135 degree Y type 3 way ball valve?
135 degree Y type 3 way ball valve with Y type port form, the seat for the three sides of the seat, with each other to 135 ° body structure, switch to the flow direction of medium according to the need to implement two kinds of working conditions.135 degree Y type 3 way ball valve installation of various forms, according to the layout of the pipeline to choose different shapes for installation, smooth flow passage, small fluid resistance, strong flow capacity, will not make the medium stop in the flow passage, the realization of the pipeline can be very good, very smooth switch, will not cause secondary pollution.It can be matched with electric actuators and pneumatic actuators for automatic control.135 degree Y type 3 way ball valve according to the need to achieve the medium flow direction switch, can be perpendicular to the two channels tee ball valve flow resistance is smaller.135 degree Y type 3 way ball valve seat seal according to the different working conditions, the sealing surface can be used PTFE (180 ℃) , PPL (220 ℃) , or hard alloy (450 ℃) , spray welding of nickel base alloy (hardness to HRC60), supersonic coated tungsten cobalt alloy (hardness greater than HRC70) and special hardening material and a variety of advanced materials, the process of 135 degree Y type 3 way ball valve structure is compact, easy to operation and maintenance, suitable for water, solvents, and working medium, such as acid, can satisfy different working conditions.Suitable for all kinds of harsh working conditions, soft seal is suitable for less than 200℃ working conditions, hard seal carbon steel does not exceed 425℃.
Application: 135 degree Y type 3 way ball valve according to different working condition, can use soft seal, spray welding of nickel base alloy (hardness greater than HRC60), supersonic coated tungsten cobalt alloy (hardness greater than HRC70) and special hard materials, and other advanced technology, applicable to all kinds of harsh conditions, soft sealing applicable under 220 ℃ condition, hard seal carbon steel does not exceed 425 ℃, stainless steel does not exceed 450 ℃.135 degree Y type 3 way ball valve is widely used in petroleum, chemical industry, power generation, papermaking, hydraulic oil, construction machinery and other industries

135 degree Y type 3 way ball valve structure	135 degree Y type 3 way ball valve picture

135 degree Y type 3 way ball valve dimension( on base of PN10, If you need other pressure and standard, please consult us)

DN	L	D	K	R	C	f	n-d
50	340	160/165	125	100	20	3	4-18
65	400	180/185	145	120	20	3	4-18
80	410	195/200	160	135	20	3	8-18
100	460	215/220	180	155	22	3	8-18
125	560	245/250	210	185	22	3	8-18
150	660	280/285	240	210	24	3	8-23
200	800	335/340	295	265	24	3	12-23
250	1030	405	355	320	30	3	12-25
300	1140	460	410	375	30	4	12-25
