Metal Seated Trunnion Ball Valve Manufacturer
2022-10-27

Metal Seated Trunnion Ball Valve Manufacturer, Factory and Supplier for metal to metal seat ball valve for high temperature medium. Metal Seated Trunnion Ball Valve is full port or reduce port,side entry & eplit body & three piece design with metal seated structure,Metal Seated Trunnion Ball Valve is mainly used to block or connect the medium in the pipeline.Metal Seated Trunnion Ball Valve with different materials can be used for water, steam, oil, liquefied gas, natural gas, gas, nitric acid,carbamide and other medium.

Metal Seated Trunnion Ball Valve is designed in accordance with API 6D featuring 2 PC or 3 PC split body, side entry or tope entry design with metal seated design for high temperature medium and system. Metal Seated Trunnion Ball Valve can be used in working temperature range -46ºC~ 500ºC. Metal Seated Trunnion Ball Valve is optional designed with Double block and bleed or double piston type.Metal seated trunnion mounted ball valve is equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. The top entry ball valve can be used for in-line maintenance services.

Metal Seated Trunnion Ball Valve standard:
Size Range: 2"~24"
Pressure Range:150LB ~ 2500LB
End Connection: Flanged End / Butt Welding End
Bore:Full Bore / Reduced Bore
Body constructoin:Three-piece Split Body, Forged Steel Or Cast Steel
Valve Direction:Bi-directional
Service:Chemical, Petrochemical, Refining, Power generation, Mining, High cycle applications, And more
Operation:Manual operation, Actuated operation, Gear operators are "preferred" for all sizes
Material:Body: Carbon Steel, Low Alloy Steel, Stainless Steel Trim: Stainless Steel, Inconel, Etc Ball Coating: Chrome Carbide, Tungsten Carbide, Etc Seat Coating: Cobalt Based Alloy, Chrome Carbide, Tungsten Carbide, Etc

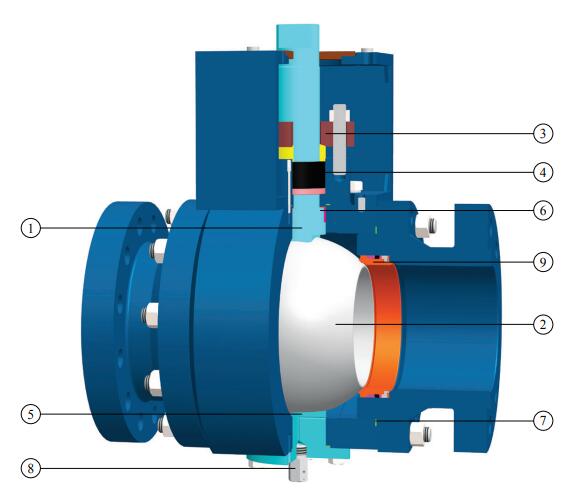

Metal Seated Trunnion Ball Valve structure feature:
Anti-Blowout stem. Unique hard sealing material & Structural design for working conditions.
Dynamic load pressing plate. Graphite packing is molded to ensure long life stem seal and meets the requirements of API 6FA.
Anti-static Structure.
Self-lubricating bearing reduces operating torque.
Gasket & metal surface provide tight seal.
Drain fitting for double block & bleed and on-line testing.
DBB feature is available for trunnion ball valves.

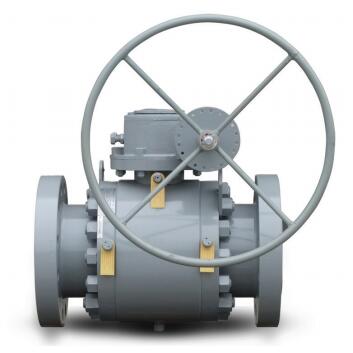

Metal Seated Trunnion Mounted Ball Valves TJ Series Metal Seated Trunnion Mounted Ball Valves TJ Series

General Note: Structure shown in the picture is only typical structure, other configurations are available upon request. We will choose suitable design and material according to the actual working temperature, pressure and medium.
