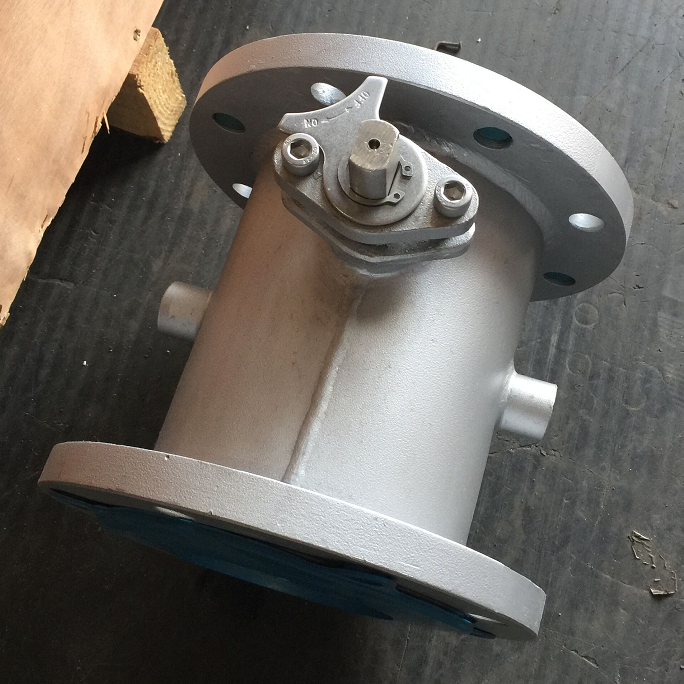

Sulfur sulphur jacketed ball valve

Jacketed Valve which we use in Sulfur application it is called by the name of Sulphur Valve or Sulfur Jacketed Ball Valve.

Standard design of jacketed ball valve and sulfur jacketed ball valve both are the same, the difference is only application.

Sulfur sulphur jacketed ball valve performance

Sulfur sulphur jacketed ball valve design standard confirms to ASME B 16.34 & ISO 17292 (BS 5351) and testing standard as per API 598 & BS 6755 – II. Flange Dimensions as per ANSI B 16.5 150# to 600# / DIN PN 6 to PN 100 / JIS / IS Standard.

Sulfur sulphur jacketed ball valve with flanged end connection being used to maintain fluid temperature during an operation to keep fluids at a lower viscosity to operate the valve easy, smooth and long-life. Standard Sulphur Jacketed Ball Valves are delivered in Carbon Steel and a variety of Stainless Steel materials.

Sulfur sulphur jacketed ball valve body design is change by adding one size higher flanges to allow enough space for bolting clearance after jacket fabricated on valve body.

Partial Half Jacketed Sulfur sulphur ball valve Jacket material available in Carbon Steel and Stainless Steel both materials. Mostly case user go with carbon steel jacket to save and money and the same direct not come in touch with any process media fluid.

All sulphur application Sulfur Jacketed Ball Valve available with steam jacketed and double acting / single acting spring return, quarter turn, rotary actuator operated along with all accessories like Actuator, Solenoid, Limit Switch, AFR, Valve Positioner, On-Off (Open-Close) Indicator etc.

Sulfur Jacketed Ball Valve body material of construction (MOC) available CS/WCB/CF8/CF3/SS304L/CF3/CF3M/316L/Duplex Steel D2205/Super Duplex Steel/Monel/Inconel/CN7M/Alloy 20/Hastelloy C22/Hast Alloy C276 and others also on request.

Sulfur sulphur jacketed ball valve face to face distance as per ANSI/ASME B 16.10 standard of oversize flange size which facilitate to replace in future with any standard non jacketed valve also.

Sulfur sulphur jacketed ball valve application

Major 90 to 95% of sulphur recovers from various industries by Claus process. Mostly Sulphur recovered from Waste Gypsum, Lead Sulfide, Iron Sulphide, Hydrogen Sulfide H2S, Oil Refinery, Natural Gas, Crude Oil, Acid Gas, and Gas Processing Plants.

Sulfur Mostly used in production of Pulp Mill, Paper Manufacturing, Rubber Additives, Fireworks, Tyre-Tire Manufacturing Plants, Sulphuric Acid Plants (H2SO4), Sulfur Dioxide Process, Petroleum Industries, Refinery, Natural Gas Plant, Fertilizer Industries, Chemical Production, Polymer Production, Sulphate Fertilizers, Phosphate Fertilizers Process and more. Our manufacturing of Sulfur Jacketed Ball Valve suitable for all process industries.
