Ball valve manufacturer

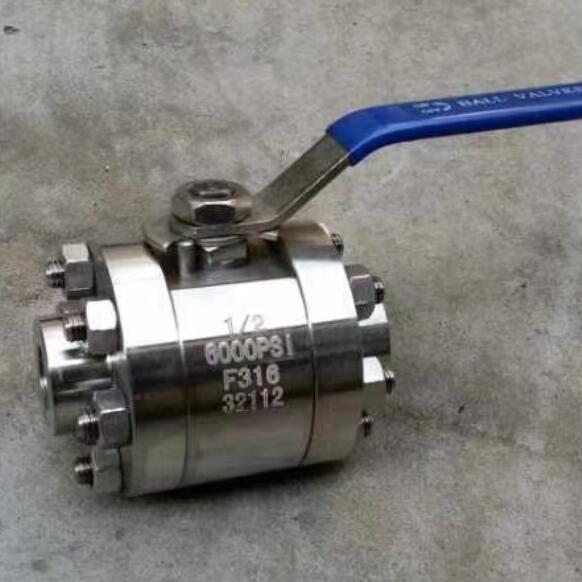

DN15 DN20 DN25 6000 PSI Ball Valve F304 F316

Port size：DN15 20 25 or others
Pressure：6000 PSI or others
Structure：3PC,Full bore
Medium：Water,steam,oil,gas,etc.
Temperature :-29～180℃
Body material：F316
Connection：Flange,Thread,SW,BW is optional
Feature：Different material is optional

Product Description

China 6000 PSI ball valve manufacturer,factory,company and supplier, DN15 DN20 DN25 6000 PSI Ball Valve F304 F316 is 3pc design with thread or BW,SW end, DN15 DN20 DN25 6000 PSI Ball Valve F304 F316 is a kind of high pressure service valve with F304 F316 or other forged steel material. DN15 DN20 DN25 6000 PSI Ball Valve F304 F316 in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium. DN15 DN20 DN25 6000 PSI Ball Valve F304 F316 most suitable for switch and cut off valve use with manual, pneumatic,electric control,which is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

DN15 DN20 DN25 6000 PSI Ball Valve F304 F316 specification:
1.Full port, 1/2-2"
2. Nonimal pressure.:6000 PSI
3. Working temperature.:-29～180℃,-40～450℃
4. Forged steel:A105,F304 ,F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

DN15 DN20 DN25 6000 PSI Ball Valve F304 F316 standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
