Ball valve manufacturer

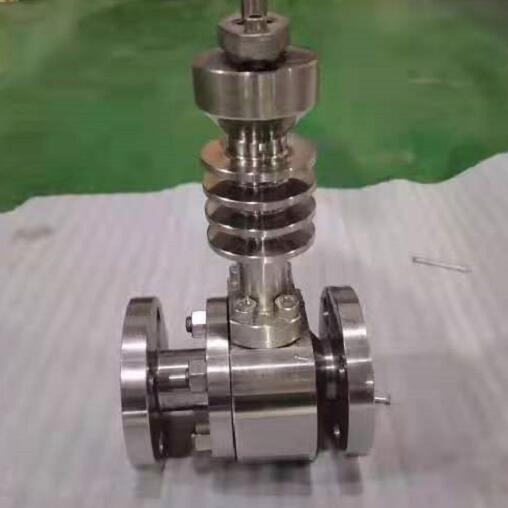

Metal seated high temperature ball valve

Port size：1/2"~12" (DN15~DN300)
Pressure：CL150-CL2500
Structure：Floating ball
Medium：High temperature medium
Temperature :-40~540ºC
Body material：WC6 WC9 F304 F316 F316L or others
Connection：Flange or others
Feature：High temperature ball valve

Product Description

Metal seated high temperature ball valve introduction:
China high temperature ball valve manufacturer,factory and supplier, Metal seated high temperature ball valve is mainly for high temperature steam or oil system,Metal seated high temperature ball valve is widely used in boiler,oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries for severe sevice situation

Metal seated high temperature ball valve Specification:

Product Name	Metal seated high temperature ball valve
1. Material	F304/F316/F304L/F316L ( CF8/CF8M/CF3/CF3M), etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB~2500LB
5. Connection Ends	Flange or others
6. Working Temp.	-40~540ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Metal seated high temperature ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Metal seated high temperature ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. Metal seat seal.
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
