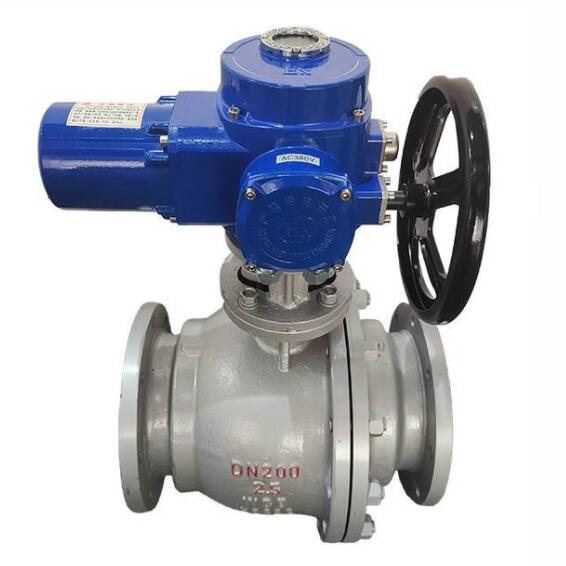

Quarter turn actuator actuated ball valve

Port size：DN15-DN600;1/2''-24''
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material：Carbon Steel, Stainless Steel,forged steel
Connection：Flanged,welded,threaded.
Feature：Different actuator function is for option.

Product Description

Quarter turn actuator actuated ball valve is composed of floating or trunnion ball valve and electric actuator with AC220V AC380V voltage and on off or 4-20mA regulating control.Quarter turn actuator actuated ball valve only need to rotate 90° drived by electric actuator can be fully closed and fully open.Quarter turn actuator actuated ball valve can cut off and circulate the medium in the transportation pipeline such as petroleum, chemical industry, papermaking, metallurgy, sewage treatment and oil tank truck.

Quarter turn actuator actuated ball valve Range:

-Ball valve size: 1/2-24" (DN15-DN600)
-Pressure: ANSI Class 150~600(PN16-PN64)
-Temperature for electric ball valve: -46ºC~ 450ºC
Body Materials: WCB,CF8 CF8M CF3 CF3M or others
Trim: CF8 CF8M CF3 CF3M or other stainless steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211

Quarter turn actuator actuated ball valve technical parameter:

Optional functions of electric actuator	switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator	QM, QC series
Voltage	AC220V, AC110V, AC380V
Nominal diameter	DN15mm ~ DN600mm
Nominal pressure	PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature	PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode	flange
electric ball valve Body material	WCB,304, 316, 316L,etc.
electric ball valve ball material	A105,304, 316, 316L,etc.
Seat lining	PTEE, PPL, metal seal
electric ball valve Suitable medium	water, petroleum, acid, viscous fluid, slurry medium, etc.

Quarter turn actuator actuated ball valve actuator technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

Quarter turn actuator actuated ball valve selection:
(1) Valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off, electric-on-off)
