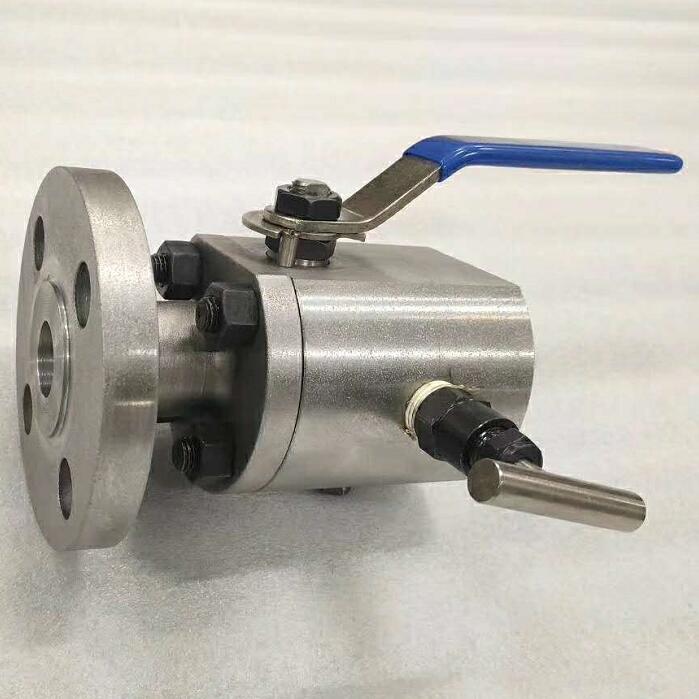

2 Piece Floating DBB Ball Valve RF NPT End

2 Piece Floating DBB Ball Valve RF NPT End introduction
2 Piece Floating DBB Ball Valve RF NPT End  is one side flange end, another side is FNPT Female end,2 Piece Floating DBB Ball Valve RF NPT End  is mainly suitable for the instrumentation but is also required as an alternative to the in-line installation of two valves.Thanks to 2 Piece Floating DBB Ball Valve RF NPT End , it is possible to have the same result reducing costs,  overall dimensions and the ability to bleed off the plant, by controlling a potential leakage of the plant.2 Piece Floating DBB Ball Valve RF NPT End  is recommended for any pressure class and ensure long-lasting seal.They can be supplied both in the Trunnion and in the Floating version.

2 Piece Floating DBB Ball Valve RF NPT End has two balls and one or two needle valves,the two ball valves can opend and closed the medium and two needle valves can discharge pressure of the valves,the 2 Piece Floating DBB Ball Valve RF NPT End is designed to replace the complex form of the connection of multiple valves in traditional pipes,so as to reduce leakage points in the system and realize fast discharging and closing. The 2 Piece Floating DBB Ball Valve RF NPT End  saves the installation procedures,reduces pressure in the pipe system,facilities instrument cleaning and maintenance and lowers the cost.

2 Piece Floating DBB Ball Valve RF NPT End Specification
DBB ball valve (ball/needle/ball), Reduce Bore, 2 Piece Body.
Design: EEMUA 182, ASME B16.34.
Body Pattern: 2 Piece.
Body: ASTM A182 F304,ASTM A182 F316 or others.
Nominal size: 1/2 - 4 Inch (DN15 - DN100).
Nominal class: 150 - 3000 LB/ 15000 PSI.
Working temperature: -46℃ - +350℃.
End Connection: RF Flanged x F-NPT.
Face to face: as per manufacturer's standard.
Test and inspection: EEMUA 182, API 598.
Operation: lever.

2 Piece Floating DBB Ball Valve RF NPT End feature
EEMUA 182, ASME B16.34 Design
Full Bore And Reduced Bore Design
Flanged, Welding, Hub, Threaded Ends
Anti Blow‐Out Stem
Anti Static Device
Fire Safe Design

2 Piece Floating DBB Ball Valve RF NPT End application
Double block & bleed
Level Measurement
Pressure Measurement
Chemical Injection
Sampling
Flow Measurement
